AGC (K1C) Switching Capacitor

Short Description:

Capacitance range: 1.5 to 40 μF

Rated voltage range: 330 to 700 Vdc

Applications: designed for switching

Applied in resonant circuits, industrial and motor speed controls, induction heaters, high frequency and high current applications.

Send email to us Download as PDF

Product Detail

Product Tags

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准 IEC 61071, IEC 60068

Dielectric 介质材料 Polypropylene film

Construction 封装结构 Extended metallized film with internal series connection and metallized film

Case 外壳材料 Solvent resistant plastic case. Flammability class UL94 V-0.

Leads 引出端 Tinned copper lugs for screw fixing or soldering on PCBS

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围 - 40 to + 85 ℃

Capacitance range 容量范围 1.5 to 40 μF

Rated voltage range 额定电压 330 to 700 Vdc

Capacitance tolerance 容量偏差 ± 5%, ± 10%

Dissipation factor 损耗角正切 ≤1.4×10^-3 Measured at 1000 Hz and 20±5℃

Life expectancy 预期寿命 100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度 2×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压 3KVAC/50Hz for 60s

Insulation resistance(IR*C_N) 绝缘电阻 ≥ 5000s but need not exceed 30GΩ,

after 1 minute of electrification at 100Vdc (20±5℃)

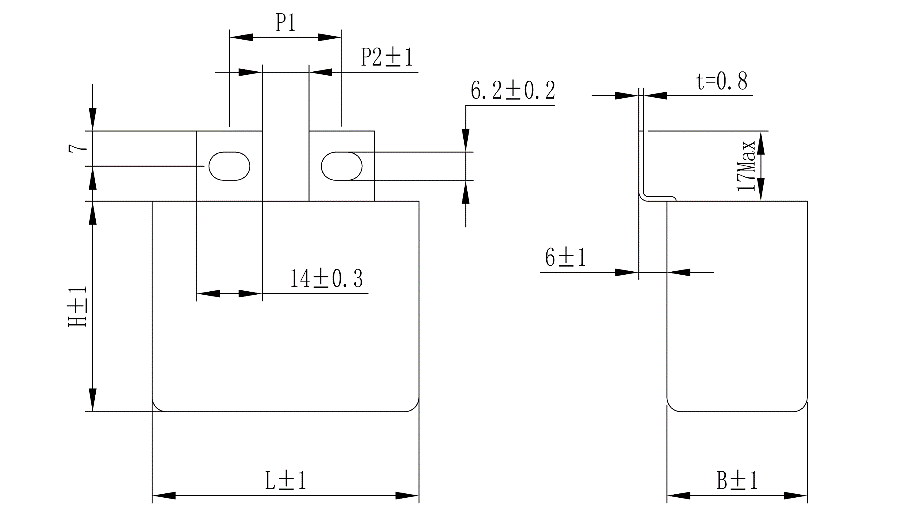

■OUTLINE DRAWING 外形图

■ELECTRICAL SPECIFICATION 规格型号参考 Unit: mm

Part Number	Cap (μF)	Dimension			Du/dt (v/μs)	Ipeak (A)	Imax @ 60℃ @10KHz (A)	ESR @100KHz (mΩ)
Part Number	Cap (μF)	L	B	H	Du/dt (v/μs)	Ipeak (A)	Imax @ 60℃ @10KHz (A)	ESR @100KHz (mΩ)
U_NDC 330Vdc, Urms 200Vac, Us 500Vdc
K1C331D685KS##***	6.8	42.5	24.5	27.5	30	204	16.5	2.8
K1C331D489KS##***	15	42.5	33.5	35.5	30	450	24.0	2.0
K1C331D206KS##***	20	42.5	33.0	45.0	30	600	27.0	1.8
K1C331D226KS##***	22	42.5	33.0	45.0	30	660	27.5	1.7
K1C331D256KS##***	25	57.5	30.0	45.0	17	425	23.5	2.8
K1C331D306KS##***	30	57.5	30.0	45.0	17	510	25.0	2.6
K1C331D356KS##***	35	57.5	35.0	50.0	17	595	30.0	2.3
K1C331D406KS##***	40	57.5	35.0	50.0	17	680	32.0	2.1
U_NDC 400Vdc, Urms 250Vac, Us 600Vdc
K1C41D405KS##***	4.0	42.5	24.5	27.5	40	160	15.5	3.2
K1C401D505KS##***	5.0	42.5	24.5	27.5	40	200	17.0	2.8
K1C401D685KS##***	6.8	42.5	33.5	35.5	40	272	22.0	2.4
K1C401D106KS##***	10	42.5	33.5	35.5	40	400	24.0	2.0
K1C401D1255KS##***	12.5	42.5	33.0	45.0	40	500	27.0	1.9
K1C401D156KS##***	15	42.5	33.0	45.0	40	600	28.0	1.8
K1C401D206KS##***	20	57.5	30.0	45.0	20	400	25.0	2.8
K1C401D226KS##***	22	57.5	35.0	50.0	20	440	26.5	2.7
K1C401D256KS##***	25	57.5	35.0	50.0	20	500	28.0	2.5
U_NDC 600Vdc, Urms 330Vac, Us 800Vdc
K1C601D255KS##***	2.5	42.5	24.5	27.5	55	137	14.5	3.8
K1C601D305KS##***	3.0	42.5	24.5	27.5	55	165	15.0	3.4
K1C601D335KS##***	3.3	42.5	24.5	27.5	55	182	15.5	3.3
K1C601D405KS##***	4.0	42.5	33.5	35.5	55	220	21.0	2.6
K1C601D475KS##***	4.7	42.5	33.5	35.5	55	259	22.0	2.4
K1C601D505KS##***	5.0	42.5	33.5	35.5	55	275	22.5	2.4
K1C601D685KS##***	6.8	42.5	33.0	45.0	55	374	25.0	2.2
K1C601D905KS##***	9.0	42.5	33.0	45.0	55	495	27.0	1.9
K1C601D106KS##***	10	57.5	30.0	45.0	30	300	22.0	3.7
K1C601D1255KS##***	12.5	57.5	35.0	50.0	30	375	24.0	3.4
K1C601D156KS##***	15	57.5	35.0	50.0	30	450	25.5	3.0
U_NDC 700Vdc, Urms 400Vac, Us 1000Vdc
K1C701D155KS##***	1.5	42.5	24.5	27.5	70	105	13.5	4.6
K1C701D205KS##***	2.0	42.5	24.5	27.5	70	140	14.5	3.8
K1C701D225KS##***	2.2	42.5	33.5	35.5	70	175	19.0	3.3
K1C701D305KS##***	3.0	42.5	33.5	35.5	70	210	20.0	3.0
K1C701D335KS##***	3.3	42.5	33.5	35.5	70	231	20.5	2.9
K1C701D405KS##***	4.0	42.5	33.0	45.0	70	280	23.5	2.5
K1C701D475KS##***	4.7	42.5	33.0	45.0	70	329	25.0	2.2
K1C701D505KS##***	5.0	42.5	33.0	45.0	70	350	25.5	2.9
K1C701D685KS##***	6.8	57.5	30.0	45.0	40	272	21.5	3.8
K1C701D805KS##***	8.0	57.5	35.0	50.0	40	320	24.0	3.5
K1C701D905KS##***	9.0	57.5	35.0	50.0	40	360	25.0	3.2
