■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071, IEC 60068

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Dry construction, Non-inductive type, filled by solid resin

Case 外壳材料                 Aluminum case

Output 引出端                 Threaded insert M6 or M8

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           2×(0.3~1.4) ; 0.6 to 1.35μF

Rated voltage range 额定电压          2000 to 3000 Vdc

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤7×10^-4 Measured at 1000 Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

Output 引出端                        Treaded insert M6 or M8

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 10s

Insulation resistance(IR*C_N)  绝缘电阻   ≥ 5000s but need not exceed 30GΩ,

after 1 minute of electrification at 100Vdc (20±5℃)

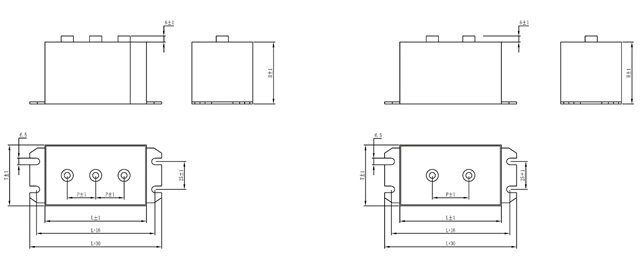

■OUTLINE DRAWING 外形图

■ELECTRICAL SPECIFICATION 规格型号参考                                                        Unit: mm

Remark: 1. # Output; *** Internal code.

2. Customization for special specification and requirement is available.
