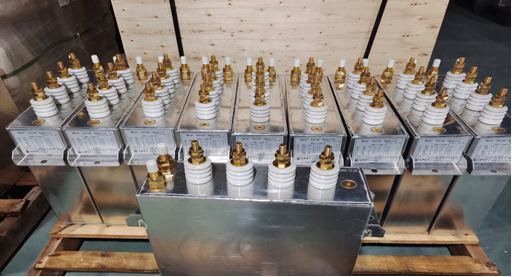

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC60110

Dielectric 介质材料         Polypropylene film / aluminum foil

Insulation oil 绝缘油    PEPE or C101 for high frequency capacitors; Rapeseed oil for DC capacitors (Non-PCB, Environmentally friendly, non-toxic biodegradable)

Case 外壳材料                Aluminum case. Side board 2mm, Cover and Base 3mm. Live or Dead case on request

Leads 引出端                  Porcelain copper screw and cooling pipe

Mounting position 安装位置     Vertically or Horizontal with proper support for the weight of the capacitor

■ELECTRICAL CHARACTERISTICS 电气特性

Ambient temperature 环境温度范围    - 20℃ to + 50℃

Rated voltage range 额定电压           up to 6000 V

Capacitance range 容量范围             up to 6000μF

Power range 功率范围                      up to 13400Kvar

Frequency range频率范围                up to 50,000Hz

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Over-voltage 过电压                  Rated voltage x 1.05 (12h per day)

Over-current 过电流                  Rated current x 1.15

Cooling methods 冷却方法            Water cooling

Water flow rate 水流量                    6L/min

Max. inlet water temperature           30℃

Max. outlet water temperature         45℃

Pressure switch (on request)           Normal close (NC) type

Discharge device (on request)         Less than 75V in 3 min.

Location 安装位置                     Indoor use, no more than 1000m altitude
