■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071, IEC 60068

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Dry construction, Non-inductive type

Case 外壳材料                Solvent resistant plastic case. Flammability class UL94V-0

Leads 引出端                 Tinned copper wire, 2 leads, 4 leads, 6 leads

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 105 ℃

Capacitance range 容量范围           0.1 to 40 μF

Rated voltage range 额定电压          330 to 850 Vdc

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤10×10^-4 Measured at 1000±20Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度             2×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 60s

Insulation resistance(IR*C_N)  绝缘电阻  ≥ 5000s but need not exceed 30GΩ,

after 1 minute of electrification at 100VDC (20±5℃)

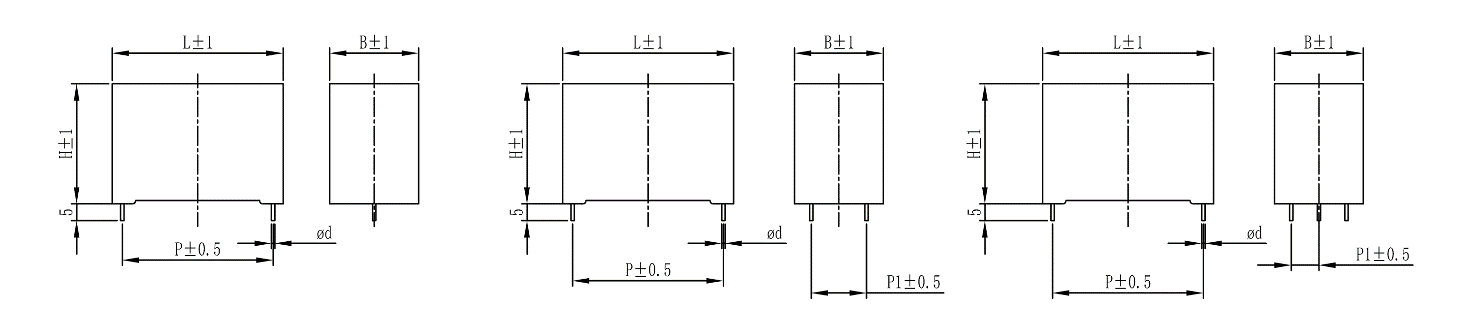

■OUTLINE DRAWING 外形图

1. Customization for special specification and requirement is available.
