■General Technical Characteristics 一般特性

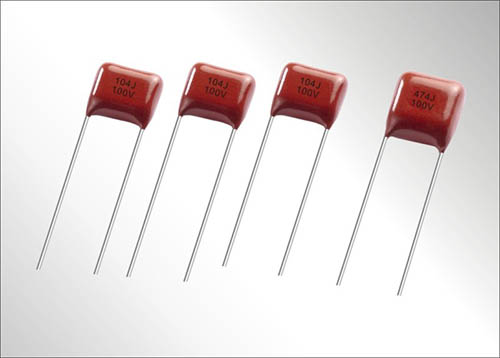

Metallized polyester film, stacked construction

金属化聚酯膜， 叠片结构

Flame retardation epoxy resin powder coated (UL94 V-0)

阻燃性环氧末包封（UL94V-0）

High dv/dt ability

抗脉冲能力强

■Electrical Characteristics 电气特性

Reference Standard 引用标准:           GB/T 7332 (IEC60384-2)

Climatic Category 气候类别:             55/105/56

Rated Temperature 额定温度:           85°C

Operating Temperature Range:           -55°C ~ 105°C

工作温度范围:                                  (+85°C to +125°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage 额定电压:                50VDC, 63VDC, 100VDC, 250VDC

Capacitance Range 电容量范围:         0.010µF ~ 3.3µF

Capacitance Tolerance 电容量偏差:      ±5% (J), ±10%(K), ±20%(M)

Dissipation Factor 损耗角正切:           ≤1.0% Measured at 1KHz and 20°C.

Test Voltage 耐电压:                         1.4U_R for 5 sec.

Insulation Resistance 绝缘电阻:          U_R>100V: ≥30 000MΩ,  for C_N≤0.33µF

                                                       ≥10 000s,    for C_N>0.33µF Measured at 20°C, 100V and 1 min.

                 U_R≤100V: ≥15 000MΩ,  for C_N≤0.33µF

                                                      ≥5 000s,    for 0.33µF˂C_N≤1µF Measured at 20°C, 10V and 1 min.

                                                     ≥1 000s,    for C_N>1µF
