■General Technical Characteristics 一般特性

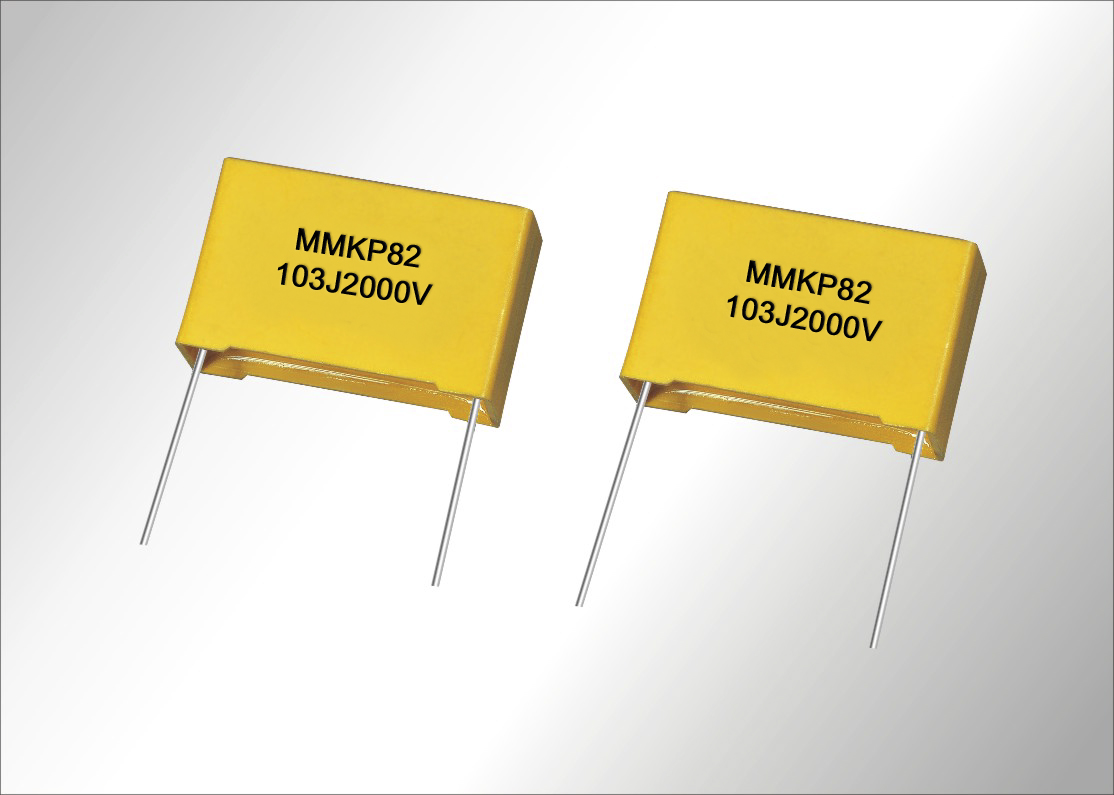

Double sided metallized polypropylene film

金属化聚丙烯膜

Low loss and small inherent temperature rise

损耗小, 内部温升小

Negative temperature coefficient of capacitance

负点容量温度系数

Exellent active and passive flame resistant circuit

优异的阻燃系数

Plastic case (UL94 V-0), epoxy resin sealing, excellent flame retardant and moisture proof

塑胶外壳（UL94 V-0 ), 阻燃环氧填充

 ■Applications 应用

Widely used in high voltage, high frequency and pulse circuit.

广泛应用于高压高频脉冲电路中

Lamp capacitor for electronic ballast compact lamps

用于电子电子镇流器和节能灯中

Snubber and SCR commutating circuits

吸收和SCR整流电路

■Electrical Characteristics 电气特性

Reference standard 引用标准:           GB/T 10190 (IEC60384-16)

Climatic Category 气候类别:             40/105/56

Rated Temperature 额定温度:           85°C for V_R(DC); 75°C for VR(AC)

Operating Temperature Range:           -40°C ~ 105°C

工作温度范围:                          +85°C to +105°C: decreasing factor 1.25% per °C for U_{R DC}

                                                +75°C to +105°C: decreasing factor 1.35% per °C for U_{R AC}

Rated Voltage 额定电压:           250VDC/180VAC, 400VDC/250VAC, 630VDC/400VAC,   1000VDC/600VAC,

                                           1600VDC/650VAC, 2000VDC/700VAC

Capacitance Range 电容量范围:         0.00022µF ~ 3.9µF

Capacitance Tolerance 电容量偏差:      ±5% (J), ±10%(K)

Dissipation factor 损耗角正切:           ≤10x10^-4 Measured at 1KHz and 20°C.

Test Voltage 耐电压:                          1.6U_R for 5 sec and 20°C.

Insulation resistance 绝缘电阻:        ≥50000MΩ C_R≤ 0.33 µF; ≥15000S, C_R>0.33 µF.  Measured at 20°C, 100V and 1 min.
