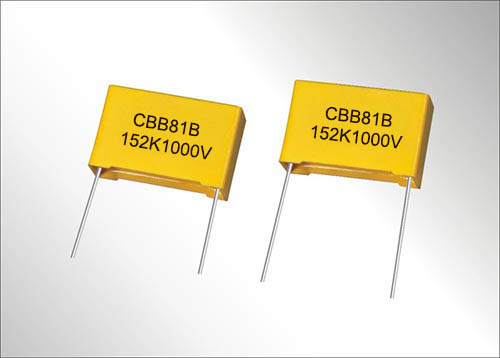

CBB81B (K6F) High-voltage metallized polypropylene film/foil capacitor Box type

CBB81B (K6F) High-voltage metallized polypropylene film/foil capacitor Box type

Short Description:

Rated Voltage: 1000V/1250V, 1600V, 2000V

 Capacitance Range: 0.0010µF ~ 0.1µF

Applications:

Horizontal resonance circuits of large screen monitor and colour TV.

Suitable for high pulse and high current loading circuit.

Suitable for the electronic ballast.







Download as PDF

Product Detail

Product Tags

General Technical Characteristics

Metallized polypropylene film/foil, wound construction.

Low loss and small inherent temperature rise.

Negative temperature coefficient of capacitance.

Plastic case (UL94 V-0), epoxy resin sealing.

Electrical Characteristics

Reference Standard :           GB/T 14579 (IEC60384-17)

Climatic Category :               40/105/21

Rated Temperature :             85°C

Operating Temperature Range:  -40°C ~ 105°C

                                               (+85°C to +105°C: decreasing factor 1.25% per °C for UR)

Rated Voltage:                     1000V/1250V, 1600V, 2000V

  Capacitance Range :          0.0010µF ~ 0.1µF

Capacitance Tolerance :       ±3% (H), ±5%(J), ±10%(K),

Dissipation Factor :             ≤10x10-4 Measured at 1KHz and 20°C

                                            ≤20x10-4 Measured at 1KHz and 20°C.

Test Voltage :                       1.75UR for 5 sec.

 Insulation Resistance :         ≥100 000MΩ  Measured at 20°C, 100V and 1 min.

Electrical Specification & Part Numbers Reference                                  Unit: mm (max)


Cap.

(μF)

1 000VDC / 1 250VDC

Part Number

W

H

T

P

d

0.0010



18.0

11.0

5.0

15.0

0.8

K6F3A102*********

0.0012

18.0

11.0

5.0

15.0

0.8

K6F3A122*********

0.0015

18.0

11.0

5.0

15.0

0.8

K6F3A152*********

0.0018

18.0

11.0

5.0

15.0

0.8

K6F3A182*********

0.0022

18.0

11.0

5.0

15.0

0.8

K6F3A222*********

0.0027

18.0

12.0

6.0

15.0

0.8

K6F3A272*********

0.0033

18.0

12.0

6.0

15.0

0.8

K6F3A332*********

0.0039

18.0

13.0

6.3

15.0

0.8

K6F3A392*********

0.0047

18.0

13.5

7.5

15.0

0.8

K6F3A472*********

0.0051

18.0

13.5

7.5

15.0

0.8

K6F3A512*********

0.0056

18.0

13.5

7.5

15.0

0.8

K6F3A562*********

0.0068

18.0

13.5

7.5

15.0

0.8

K6F3A682*********

0.0075

18.0

14.5

8.5

15.0

0.8

K6F3A752*********

0.0082

18.0

14.5

8.5

15.0

0.8

K6F3A822*********

0.0091

18.0

14.5

8.5

15.0

0.8

K6F3A912*********

0.010

18.0

14.5

8.5

15.0

0.8

K6F3A103*********

0.012

18.0

14.5

8.5

15.0

0.8

K6F3A123*********

0.015

18.0

16.0

10.0

15.0

0.8

K6F3A153*********

0.018

26.5

16.5

7.0

22.5

0.8

K6F3A183*********

0.022

26.5

17.0

8.5

22.5

0.8

K6F3A223*********

0.027

26.5

19.0

10.0

22.5

0.8

K6F3A273*********

0.033

26.5

19.0

10.0

22.5

0.8

K6F3A333*********

0.036

26.5

20.0

11.5

22.5

0.8

K6F3A363*********

0.039

26.5

20.0

11.5

22.5

0.8

K6F3A393*********

0.047

32.0

20.0

11.0

22.5

0.8

K6F3A473*********

0.056

32.0

20.0

11.0

22.5

0.8

K6F3A563*********

0.068

32.0

22.0

13.0

22.5

0.8

K6F3A683*********

0.082

32.0

22.0

13.0

22.5

0.8

K6F3A823*********

0.10

32.0

25.0

14.0

22.5

0.8

K6F3A104*********



Cap.

(μF)

1 600VDC

Part Number

W

H

T

P

d

0.0010



18.0

11.0

5.0

15.0

0.8

K6F3C102*********

0.0012

18.0

11.0

5.0

15.0

0.8

K6F3C122*********

0.0015

18.0

11.0

5.0

15.0

0.8

K6F3C152*********

0.0018

18.0

12.0

6.0

15.0

0.8

K6F3C182*********

0.0022

18.0

12.0

6.0

15.0

0.8

K6F3C222*********

0.0027

18.0

12.0

6.0

15.0

0.8

K6F3C272*********

0.0033

18.0

13.5

7.5

15.0

0.8

K6F3C332*********

0.0039

18.0

13.5

7.5

15.0

0.8

K6F3C392*********

0.0047

18.0

14.5

8.5

15.0

0.8

K6F3C472*********

0.0051

18.0

16.0

10.0

15.0

0.8

K6F3C512*********

0.0056

18.0

16.0

10.0

15.0

0.8

K6F3C562*********

0.0068

18.0

16.0

10.0

15.0

0.8

K6F3C682*********

0.0075

26.5

15.0

6.0

22.5

0.8

K6F3C752*********

0.0082

26.5

15.0

6.0

22.5

0.8

K6F3C822*********

0.0091

26.5

16.5

7.0

22.5

0.8

K6F3C912*********

0.010

26.5

16.5

7.0

22.5

0.8

K6F3C103*********

0.012

26.5

17.0

8.5

22.5

0.8

K6F3C123*********

0.015

26.5

19.0

10.0

22.5

0.8

K6F3C153*********

0.018

26.5

19.0

10.0

22.5

0.8

K6F3C183*********

0.022

26.5

20.0

11.0

22.5

0.8

K6F3C223*********

Remark：

1. “*********”= Capacitance tolerance code, Pitch, Lead form and packaging code, Lead form, Lead length, Internal code.

2. Customization for special specification and requirement is available.
