■General Technical Characteristics 一般特性

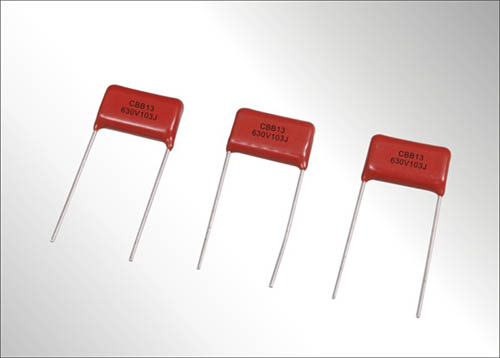

Film/foil, non-inductive wound type, dipped

膜箔式电容器，无感卷绕结构，浸渍型

Excellent frequency and temperature characteristics

优异的频率和温度特性

Very small loss even at high frequency

即使在高频下， 损耗也极小

Flame retardant epoxy resin powder coating (UL94/V-0)

阻燃环氧粉末包封（UL94/V-0）

■Electrical Characteristics 电气特性

Reference Standard 引用标准:           GB 10188 ( IEC 60384-13 )

Climatic Category 气候类别:             55/105/21

Rated Temperature 额定温度:           85°C

Operating Temperature Range:           -40°C ~ 105°C

工作温度范围:                          (+85°C to +105°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage 额定电压:               100VDC, 160VDC, 200VDC, 250VDC, 400VDC, 630VDC, 800VDC

Capacitance Range 电容量范围:         0.0010µF ~ 0.10µF

Capacitance Tolerance 电容量偏差:      ±5% (J), ±10%(K)

Dissipation Factor 损耗角正切:           ≤10*10^-4 % Measured at 1KHz and 20°C.

Test Voltage 耐电压:                   2.0U_R for 5 sec.

Insulation Resistance 绝缘电阻:          ≥50 000MΩ,  for C_N ≤ 0.1µF

                                      ≥5000s,      for C_N > 0.1µF Measured at 20°C, 100V and 1 min.
