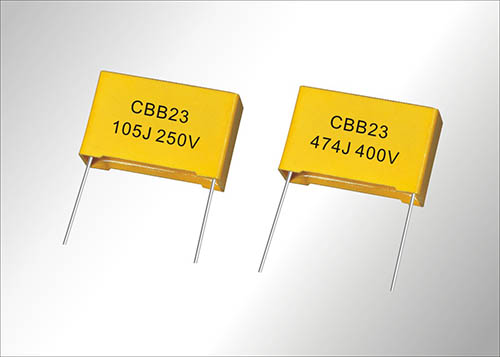

CBB23 (K6B) Metallized polypropylene film capacitor Box-type AC

CBB23 (K6B) Metallized polypropylene film capacitor Box-type AC

Short Description:

Rated Voltage: 400VAC, 500VAC, 600VAC, 700VAC, 900VAC

Capacitance Range: 0.00047µF ~ 0.15µF

Applications

Pulse applications with high A.C. voltage and high current.

Electric lighting (i.e. Electric ballast, E-HID).

High-frequency A.C. loads


Download as PDF

Product Detail

Product Tags

General Technical Characteristics

Metallized polypropylene film.

Low loss at high frequency.

Small inherent temperature rise.

Plastic case (UL94 V-0), epoxy resin sealing.

Electrical Characteristics

Reference standard:          GB/T 14579 (IEC60384-17)

Climatic Category:             40/105/56

Rated Temperature:           85°C

Operating Temperature Range:  -40°C ~ 105°C

                                                  (+85°C to +105°C: decreasing factor 1.25% per °C for UR(dc) )

  Rated Voltage :                400VAC, 500VAC, 600VAC, 700VAC, 900VAC

  Capacitance Range:         0.00047µF ~ 0.15µF

Capacitance Tolerance :  ±5% (J), ±10%(K)

Dissipation factor :           ≤10x10-4 Measured at 1KHz and 20°C.

Test Voltage:                   1.6UR for 5 sec.

Insulation resistance :     ≥100 000MΩ, Measured at 20°C, 100V and 1 min

Electrical Specification & Part Numbers Reference                                  Unit: mm (max)

Cap.

(μF)

400VAC

Part Number

W

H

T

P

d

0.00082

10.5

9.0

4.0

7.5

0.6

K6BG2821*********

0.0010

10.5

9.0

4.0

7.5

0.6

K6BG2102*********

0.0012

10.5

9.0

4.0

7.5

0.6

K6BG2122*********

0.0015

10.5

9.0

4.0

7.5

0.6

K6BG2152*********

0.0018

10.5

9.0

4.0

7.5

0.6

K6BG2182*********

0.0022

10.5

9.0

4.0

7.5

0.6

K6BG2222*********

0.0027

10.5

9.0

4.0

7.5

0.6

K6BG2272*********

0.0033

10.5

9.0

4.0

7.5

0.6

K6BG2332*********

0.0036

10.5

9.0

4.0

7.5

0.6

K6BG2362*********

0.0039

10.5

9.0

4.0

7.5

0.6

K6BG2392*********

0.0047

10.5

9.0

4.0

7.5

0.6

K6BG2472*********

0.0056

10.5

11.0

5.0

7.5

0.6

K6BG2562*********

0.0068

10.5

11.0

5.0

7.5

0.6

K6BG2682*********

0.0082

10.5

11.0

5.0

7.5

0.6

K6BG2822*********

0.010

10.5

12.0

6.0

7.5

0.6

K6BG2103*********

0.012

10.5

12.0

6.0

7.5

0.6

K6BG2123*********

0.0010

13.0

9.0

4.0

10.0

0.6

K6BG2102*********

0.0012

13.0

9.0

4.0

10.0

0.6

K6BG2122*********

0.0015

13.0

9.0

4.0

10.0

0.6

K6BG2152*********

0.0018

13.0

9.0

4.0

10.0

0.6

K6BG2182*********

0.0022

13.0

9.0

4.0

10.0

0.6

K6BG2222*********

0.0027

13.0

9.0

4.0

10.0

0.6

K6BG2172*********

0.0033

13.0

9.0

4.0

10.0

0.6

K6BG2332*********

0.0039

13.0

9.0

4.0

10.0

0.6

K6BG2392*********

0.0047

13.0

11.0

5.0

10.0

0.6

K6BG2472*********

0.0056

13.0

11.0

5.0

10.0

0.6

K6BG2562*********

0.0068

13.0

11.0

5.0

10.0

0.6

K6BG2682*********

0.0082

13.0

12.0

6.0

10.0

0.6

K6BG2822*********

0.010

13.0

12.0

6.0

10.0

0.6

K6BG2103*********



Cap.

(μF)

400VAC

Part Number

W

H

T

P

d

0.0022

17.5

11.0

5.0

15.0

0.8

K6BG2222*********

0.0027

17.5

11.0

5.0

15.0

0.8

K6BG2272*********

0.0033

17.5

11.0

5.0

15.0

0.8

K6BG2332*********

0.0039

17.5

11.0

5.0

15.0

0.8

K6BG2392*********

0.0047

17.5

11.0

5.0

15.0

0.8

K6BG2472*********

0.0056

17.5

11.0

5.0

15.0

0.8

K6BG2562*********

0.0068

17.5

11.0

5.0

15.0

0.8

K6BG2682*********

0.0082

17.5

11.0

5.0

15.0

0.8

K6BG2822*********

0.010

17.5

11.0

5.0

15.0

0.8

K6BG2103*********

0.012

17.5

11.0

5.0

15.0

0.8

K6BG2123*********

0.015

17.5

12.0

6.0

15.0

0.8

K6BG2153*********

0.018

17.5

12.0

6.0

15.0

0.8

K6BG2183*********

0.022

17.5

13.5

7.5

15.0

0.8

K6BG2223*********

0.027

17.5

13.5

7.5

15.0

0.8

K6BG2273*********

0.033

17.5

14.5

8.5

15.0

0.8

K6BG2333*********

0.039

17.5

16.0

10.0

15.0

0.8

K6BG2393*********

0.047

17.5

16.0

10.0

15.0

0.8

K6BG2473*********

0.056

17.5

19.0

11.0

15.0

0.8

K6BG2563*********

0.068

17.5

19.0

11.0

15.0

0.8

K6BG2683*********

0.018

26.5

15.0

6.0

22.5

0.8

K6BG2183*********

0.022

26.5

15.0

6.0

22.5

0.8

K6BG2223*********

0.027

26.5

15.0

6.0

22.5

0.8

K6BG2273*********

0.033

26.5

15.0

6.0

22.5

0.8

K6BG2333*********

0.039

26.5

15.0

6.0

22.5

0.8

K6BG2393*********

0.047

26.5

16.0

7.0

22.5

0.8

K6BG2473*********

0.056

26.5

16.0

7.0

22.5

0.8

K6BG2563*********

0.068

26.5

17.0

8.5

22.5

0.8

K6BG2683*********

0.082

26.5

17.0

8.5

22.5

0.8

K6BG2823*********

0.10

26.5

18.5

10.0

22.5

0.8

K6BG2104*********

0.12

26.5

22.0

12.0

22.5

0.8

K6BG2124*********

0.15

26.5

22.0

12.0

22.5

0.8

K6BG2154*********

Remark：

1. “*********”= Capacitance tolerance code, Pitch, Lead form and packaging code, Lead form, Lead length, Internal code.

2. Customization for special specification and requirement is available.
