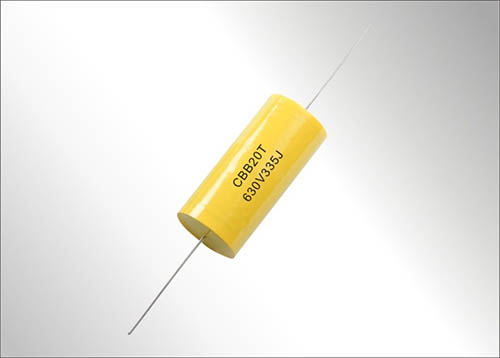

CBB20T (K6T)

CBB20T (K6T)

Short Description:

Rated Voltage: 100V/160V, 250V, 400V, 630V, 1000V, 1250V

 Capacitance Range: 0.0010µF ~ 15.0µF

Applications:

Temperature compensation circuits.

Timing, oscillator circuits.

Power factor correction and coupling capacitor in SMPS applications.

Download as PDF

Product Detail

Product Tags

General Technical Characteristics

Metallized polypropylene film, non-inductive type, axial.

Excellent self-healing property.

Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin.

Electrical Characteristics

Reference standard:          GB/T 10190 (IEC60384-16)

Climatic Category:             40/85/21

Rated Temperature:           85°C

Operating Temperature Range:  -40°C ~ 105°C

                                                  (+85°C to +105°C: decreasing factor 1.25% per °C for UR(dc) )

  Rated Voltage :                100V/160V, 250V, 400V, 630V, 1000V, 1250V

  Capacitance Range:         0.0010µF ~ 15.0µF

Capacitance Tolerance :  ±5% (J), ±10%(K)

Dissipation factor :           ≤10x10-4 Measured at 1KHz and 20°C.

Test Voltage:                   1.6UR for 5 sec.

Insulation resistance :     ≥100 000MΩ,   for CN≤0.33µF

                                          ≥15 000s,      for CN>0.33µF Measured at 20°C, 100V and 1 min

Electrical Specification & Part Numbers Reference                                  Unit: mm (max)

Cap

 (μF)

100VDC（60VAC）/ 160VDC (90VAC)

Part Number

D

L

d

0.022

5.0

12.0

0.6

K6T2A223*********

0.027

5.0

12.0

0.6

K6T2A273*********

0.033

5.0

12.0

0.6

K6T2A333*********

0.039

5.0

12.0

0.6

K6T2A393*********

0.047

5.0

12.0

0.6

K6T2A473*********

0.056

5.0

12.0

0.6

K6T2A563*********

0.068

5.5

12.0

0.6

K6T2A683*********

0.082

5.0

14.5

0.6

K6T2A823*********

0.10

5.5

14.5

0.6

K6T2A104*********

0.12

6.0

14.5

0.6

K6T2A124*********

0.15

6.5

14.5

0.6

K6T2A154*********

0.18

7.0

14.5

0.8

K6T2A184*********

0.22

7.5

14.5

0.8

K6T2A224*********

0.27

8.5

14.5

0.8

K6T2A274*********

0.33

7.0

20.0

0.8

K6T2A334*********

0.39

7.5

20.0

0.8

K6T2A394*********

0.47

8.0

20.0

0.8

K6T2A474*********

0.56

9.0

20.0

0.8

K6T2A564*********

0.68

8.0

27.5

0.8

K6T2A684*********

0.82

8.5

27.5

0.8

K6T2A824*********

1.0

9.5

27.5

0.8

K6T2A105*********

1.2

10.0

27.5

0.8

K6T2A125*********

1.5

11.5

27.5

0.8

K6T2A155*********

1.8

12.0

27.5

0.8

K6T2A185*********

2.2

12.0

33.0

0.8

K6T2A225*********

2.7

13.0

33.0

0.8

K6T2A275*********

3.3

14.0

33.0

0.8

K6T2A335*********

3.9

15.0

33.0

0.8

K6T2A395*********

4.7

16.5

33.0

1.0

K6T2A475*********

5.6

17.5

33.0

1.0

K6T2A565*********

6.8

17.5

41.5

1.0

K6T2A685*********

8.2

19.0

41.5

1.0

K6T2A825*********

10.0

20.5

41.5

1.0

K6T2A106*********

12.0

19.0

56.5

1.0

K6T2A126*********

15.0

21.0

56.5

1.0

K6T2A156*********


p

 (μF)

250VDC（160VAC）

Part Number

D

L

d

0.010

5.0

12.0

0.6

K6T2E103*********

0.012

5.0

12.0

0.6

K6T2E123*********

0.015

5.0

12.0

0.6

K6T2E153*********

0.018

5.0

12.0

0.6

K6T2E183*********

0.022

5.0

12.0

0.6

K6T2E223*********

0.027

5.0

12.0

0.6

K6T2E273*********

0.033

5.5

12.0

0.6

K6T2E333*********

0.039

5.0

14.5

0.6

K6T2E393*********

0.047

5.5

14.5

0.6

K6T2E473*********

0.056

5.5

14.5

0.6

K6T2E563*********

0.068

6.0

14.5

0.6

K6T2E683*********

0.082

6.5

14.5

0.6

K6T2E823*********

0.10

7.0

14.5

0.8

K6T2E104*********

0.12

7.5

14.5

0.8

K6T2E124*********

0.15

8.0

14.5

0.8

K6T2E154*********

0.18

8.5

14.5

0.8

K6T2E184*********

0.22

7.5

20.0

0.8

K6T2E224*********

0.27

8.0

20.0

0.8

K6T2E274*********

0.33

9.0

20.0

0.8

K6T2E334*********

0.39

9.5

20.0

0.8

K6T2E394*********

0.47

8.5

27.5

0.8

K6T2E474*********

0.56

9.0

27.5

0.8

K6T2E564*********

0.68

10.0

27.5

0.8

K6T2E684*********

0.82

10.5

27.5

0.8

K6T2E824*********

1.0

12.0

27.5

0.8

K6T2E105*********

1.2

12.5

27.5

0.8

K6T2E125*********

1.5

12.5

33.0

0.8

K6T2E155*********

1.8

13.5

33.0

0.8

K6T2E185*********

2.2

14.5

33.0

0.8

K6T2E225*********

2.7

16.0

33.0

1.0

K6T2E275*********

3.3

17.5

33.0

1.0

K6T2E335*********

3.9

18.5

33.0

1.0

K6T2E395*********

4.7

18.0

41.5

1.0

K6T2E475*********

5.6

19.5

41.5

1.0

K6T2E565*********

6.8

21.5

41.5

1.0

K6T2E685*********

8.2

23.0

41.5

1.0

K6T2E825*********

10.0

21.5

56.5

1.0

K6T2E106*********

12.0

23.5

56.5

1.0

K6T2E126*********

15.0

25.5

56.5

1.0

K6T2E156*********


Cap

 (μF)

400VDC（200VAC）

Part Number

D

L

d

0.0068

5.0

12.0

0.6

K6T2G682*********

0.0082

5.0

12.0

0.6

K6T2G822*********

0.010

5.0

12.0

0.6

K6T2G103*********

0.012

5.0

12.0

0.6

K6T2G123*********

0.015

5.0

12.0

0.6

K6T2G153*********

0.018

5.5

12.0

0.6

K6T2G183*********

0.022

5.5

12.0

0.6

K6T2G223*********

0.027

5.0

14.5

0.6

K6T2G273*********

0.033

5.5

14.5

0.6

K6T2G333*********

0.039

6.0

14.5

0.6

K6T2G393*********

0.047

6.5

14.5

0.6

K6T2G473*********

0.056

6.5

14.5

0.6

K6T2G563*********

0.068

7.0

14.5

0.8

K6T2G683*********

0.082

7.5

14.5

0.8

K6T2G823*********

0.10

7.0

20.0

0.8

K6T2G104*********

0.12

7.5

20.0

0.8

K6T2G124*********

0.15

8.0

20.0

0.8

K6T2G154*********

0.18

8.5

20.0

0.8

K6T2G184*********

0.22

9.0

20.0

0.8

K6T2G224*********

0.27

10.0

20.0

0.8

K6T2G274*********

0.33

9.0

27.5

0.8

K6T2G334*********

0.39

9.5

27.5

0.8

K6T2G394*********

0.47

10.0

27.5

0.8

K6T2G474*********

0.56

10.5

27.5

0.8

K6T2G564*********

0.68

12.0

27.5

0.8

K6T2G684*********

0.82

13.0

27.5

0.8

K6T2G824*********

1.0

12.5

33.0

0.8

K6T2G105*********

1.2

13.5

33.0

0.8

K6T2G125*********

1.5

15.0

33.0

0.8

K6T2G155*********

1.8

16.0

33.0

1.0

K6T2G185*********

2.2

17.5

33.0

1.0

K6T2G225*********

2.7

19.0

33.0

1.0

K6T2G275*********

3.3

18.5

41.5

1.0

K6T2G335*********

3.9

20.0

41.5

1.0

K6T2G395*********

4.7

21.5

41.5

1.0

K6T2G475*********

5.6

23.5

41.5

1.0

K6T2G565*********

6.8

21.5

56.5

1.0

K6T2G685*********

8.2

23.5

56.5

1.0

K6T2G825*********

10.0

25.5

56.5

1.0

K6T2G106*********

Remark：

1. “*********”= Capacitance tolerance code, Pitch, Lead form and packaging code, Lead form, Lead length, Internal code.

2. Customization for special specification and requirement is available.
