AFP (K9P) AC filter Capacitor
■GENERAL TECHNICAL CHARACTERISTICS 技术特性
Reference standards 参考标准 IEC 61071, IEC 60068
Dielectric 介质材料 Polypropylene film
Construction 封装结构 Dry construction
Case 外壳材料 Cylinder aluminum case
Output 引出端 Threaded insert M5 or M6, bolt available
■ELECTRICAL CHARACTERISTICS 电气特性
Operating temperature 工作温度范围 - 40 to + 85 ℃
Capacitance range 容量范围 9 to 470 μF
Rated voltage range 额定电压 330 to 1400 Vac
Capacitance tolerance 容量偏差 ± 5%, ± 10%
Dissipation factor 损耗角正切 ≤2.0×10-3 Measured at 100 Hz and 20±5℃
Life expectancy 预期寿命 100,000 hours at Urms and 70 ℃(Hot-spot temperature)
■TEST METHODS AND PERFORMANCES 测试方法
Dielectric strength 介质强度 1.5×Urms applied to 10s at 20±5 ℃
Test voltage terminal to case 端壳耐压 3500VAC/50Hz for 10s
Insulation resistance(IR*CN) 绝缘电阻 ≥ 10000s but need not exceed 30GΩ,
after 1 minute of electrification at 100VDC (20±5℃)

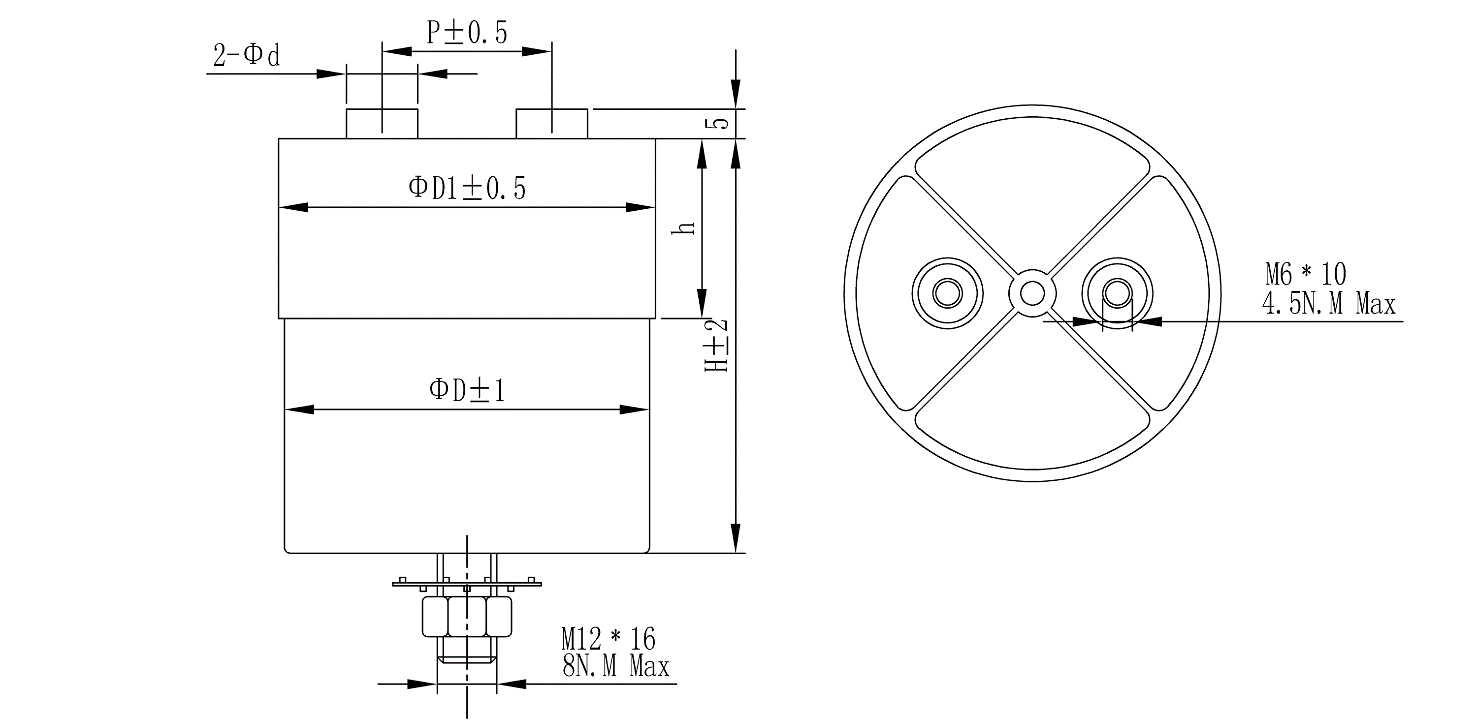

■OUTLINE DRAWING 外形图
■ELECTRICAL SPECIFICATION 规格型号参考 Unit: mm
Part Number | Capacitance (μF) | Dimension | Imax @ 45℃ @10KHz (A) | ESR @1.0KHz (mΩ) | Rth (K/W) | Weight (Kg) | ||
D | H | P | ||||||
Urms 330Vac, Upeak 466V | ||||||||
K9P331A476KR###**** | 47 | 60.0 | 70.0 | 28.6 | 25 | 2.7 | 7.5 | 0.3 |
K9P331A906KR###*** | 90 | 60.0 | 120.0 | 28.6 | 40 | 1.5 | 4.6 | 0.5 |
K9P331A107KR###*** | 100 | 86.0 | 70.0 | 32.0 | 40 | 1.4 | 5.3 | 0.6 |
K9P331A207KR###*** | 200 | 86.0 | 124.0 | 32.0 | 65 | 0.8 | 3.3 | 1.0 |
K9P331A257KR###*** | 250 | 86.0 | 144.0 | 32.0 | 65 | 0.9 | 2.9 | 1.1 |
K9P331A357KR###*** | 350 | 116.0 | 128.0 | 50.0 | 80 | 0.5 | 2.4 | 1.9 |
K9P331A407KR###*** | 400 | 116.0 | 128.0 | 50.0 | 80 | 0.5 | 2.4 | 1.8 |
K9P331A477KR###*** | 470 | 116.0 | 148.0 | 50.0 | 80 | 0.6 | 2.1 | 2.1 |
Urms 550Vac, Upeak 777V | ||||||||
K9P551A406KR###*** | 40 | 86.0 | 70.0 | 32.0 | 40 | 2.3 | 5.3 | 0.5 |
K9P551A506KR###*** | 50 | 86.0 | 80.0 | 32.0 | 40 | 2.5 | 4.8 | 0.6 |
K9P551A806KR###*** | 80 | 86.0 | 124.0 | 32.0 | 60 | 1.3 | 3.3 | 0.9 |
K9P551A107KR###*** | 100 | 86.0 | 144.0 | 32.0 | 60 | 1.4 | 2.9 | 1.1 |
K9P551A157KR###*** | 150 | 116.0 | 128.0 | 50.0 | 75 | 0.9 | 2.4 | 1.8 |
K9P551A227KR###*** | 220 | 116.0 | 178.0 | 50.0 | 80 | 0.7 | 1.7 | 2.5 |
Urms 850Vac, Upeak 1200V | ||||||||
K9P851A146KR###*** | 14 | 86.0 | 70.0 | 32.0 | 40 | 2.0 | 5.3 | 0.5 |
K9P851A306KR###*** | 30 | 116.0 | 120.0 | 32.0 | 40 | 3.3 | 3.5 | 0.9 |
K9P851A556KR###*** | 55 | 116.0 | 124.0 | 50.0 | 50 | 2.0 | 2.5 | 1.7 |
K9P851A606KR###*** | 60 | 86.0 | 226.0 | 32.0 | 65 | 1.8 | 1.8 | 1.6 |
K9P851A117KR###*** | 110 | 116.0 | 228.0 | 50.0 | 75 | 1.2 | 1.3 | 3.0 |
K9P851A167KR###*** | 160 | 136.0 | 230.0 | 50.0 | 80 | 0.9 | 1.1 | 4.1 |
Urms 1400Vac, Upeak 1980V | ||||||||
K9P142A905KR###*** | 9 | 86.0 | 124.0 | 32.0 | 40 | 2.5 | 3.3 | 0.9 |
K9P142A116KR###*** | 11 | 86.0 | 144.0 | 32.0 | 40 | 2.9 | 2.9 | 1.1 |
K9P142A206KR###*** | 20 | 86.0 | 225.0 | 32.0 | 45 | 4.2 | 1.8 | 1.6 |
K9P142A226KR###*** | 22 | 116.0 | 148.0 | 50.0 | 60 | 1.5 | 2.1 | 2.0 |
K9P142A396KR###*** | 39 | 116.0 | 228.0 | 50.0 | 60 | 2.2 | 1.3 | 2.9 |
K9P142A556KR###*** | 55 | 136.0 | 230.0 | 50.0 | 70 | 1.7 | 1.1 | 3.9 |
Remark: 1. ### Output, output size, and installation method; *** Internal code.
2. Customization for special specification and requirement is available.
