■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Extended metallized carrier film

Case 外壳材料                 Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0)

Leads 引出端                  Tinned copper wire

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           0.1 to 40 μF

Rated voltage range 额定电压          250 to 500 Vac

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤1.0×10^-3 Measured at 100 Hz and 20±5℃

Life expectancy 预期寿命              30,000 hours at Urms and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×Urms applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 10s

Insulation resistance(IR*C_N)  绝缘电阻   ≥ 5000s but need not exceed 30GΩ,

after 1 minute of electrification at 100VDC (20±5℃)

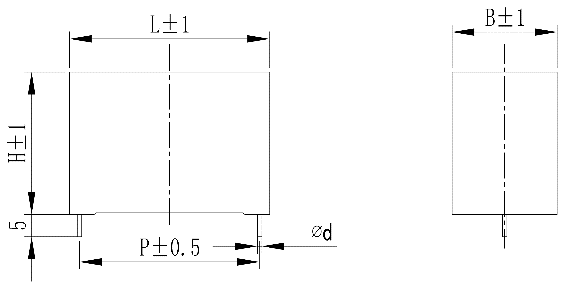

■OUTLINE DRAWING 外形图

Remark: 1. *** Internal code.

      2. Customization for special specification and requirement is available.
