Polypropylene Film Capacitors
-
CBB81B (K6F)
Rated Voltage: 1000V/1250V, 1600V, 2000V
Capacitance Range: 0.0010µF ~ 0.1µF
Applications:
Horizontal resonance circuits of large screen monitor and colour TV.
Suitable for high pulse and high current loading circuit.
Suitable for the electronic ballast.
-
CBB21B (K6D)
Rated Voltage: 160Vdc(90Vac), 250Vdc(160Vac), 400Vdc(200Vac), 630Vdc(250Vac)
1000Vdc(450Vac), 1600Vdc(600Vac), 2000Vdc(700Vac)
Capacitance Range: 0.00056µF ~ 15.0µF
Applications
Widely used in high frequency, DC, AC and pulse circuits.
S-correction circuits for TV sets and monitors.
-
CBB81 (K6H)
Rated Voltage: 630V, 800V, 1000V/1250V, 1600V, 2000V, 2500V
Capacitance Range: 0.0010µF ~ 0.036µF
Applications
Horizontal resonance circuits of large screen monitor and colour TV.
Suitable for high pulse and high current loading circuit.
Suitable for the electronic ballast.
-
CBB13 (K6L)
Rated Voltage: 100VDC, 160VDC, 200VDC, 250VDC, 400VDC, 630VDC, 800VDC
Capacitance Range: 0.0010µF ~ 0.10µF
Applications:
Widely used in high frequency, DC and pulse circuits.
-
CBB20T (K6T)
Rated Voltage: 100V/160V, 250V, 400V, 630V, 1000V, 1250V
Capacitance Range: 0.0010µF ~ 15.0µF
Applications:
Temperature compensation circuits.
Timing, oscillator circuits.
Power factor correction and coupling capacitor in SMPS applications.
-
CBB20A (K6A)
Rated Voltage: 100V/160V, 250V, 400V, 630V, 1000V, 1250V
Capacitance Range: 0.0010µF ~ 15.0µF
Applications:
Temperature compensation circuits.
Timing, oscillator circuits.
Power factor correction and coupling capacitor in SMPS applications.
-

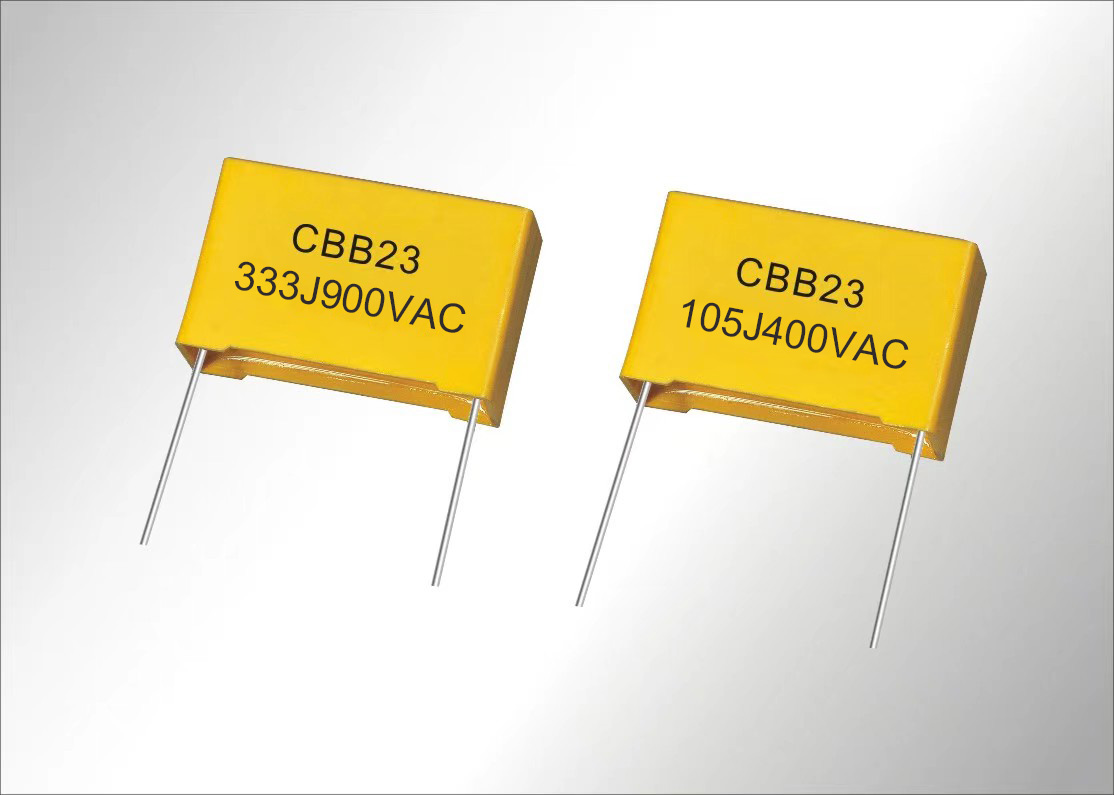

CBB23 (K6B)
Rated Voltage: 400VAC, 500VAC, 600VAC, 700VAC, 900VAC
Capacitance Range: 0.00047µF ~ 0.15µF
Applications
Pulse applications with high A.C. voltage and high current.
Electric lighting (i.e. Electric ballast, E-HID).
High-frequency A.C. loads
-

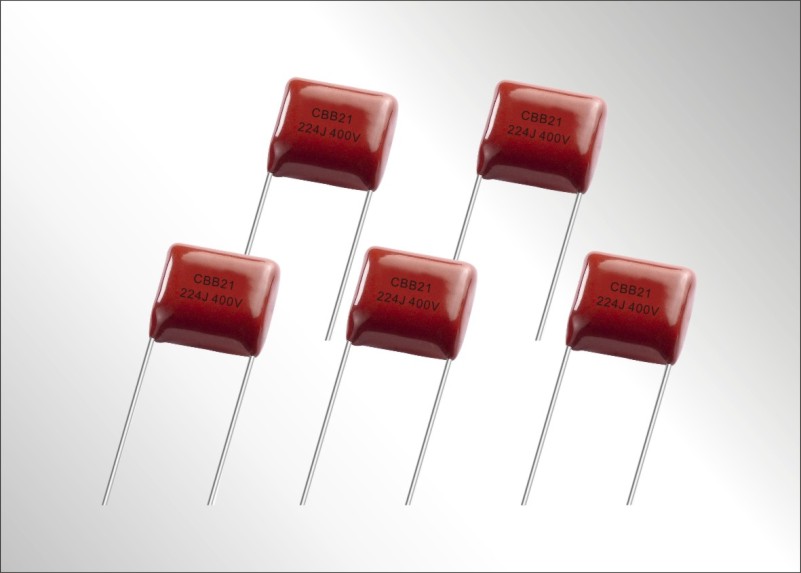

CBB21 (K6C)
Rated Voltage: 100VDC, 250VDC, 400VDC, 630VDC, 1000V, 1250V
Capacitance Range: 0.00056µF ~ 15.0µF
Applications
Widely used in high frequency, DC, AC and pulse circuits.
Providing optimum performance with small size inS-correction circuits for color TV set.
Specially designed for S-correction circuits of largeScreen monitor and color TV.
Suitable for the situation where applies high frequency and high current pulse.
