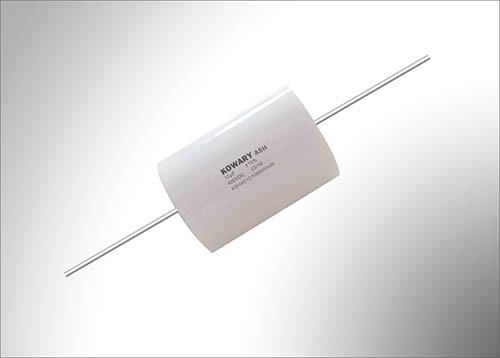

GENERAL TECHNICAL CHARACTERISTICS

Reference standards:    IEC 61071, IEC 60068

Dielectric:                       Polypropylene film

Construction:                  Extended metallized film

Case:                              Polyester tape wrapping, UL94 V-0 material filling

Leads:                            Tinned copper wire

ELECTRICAL CHARACTERISTICS

Operating temperature:   - 40 to + 85 ℃

Capacitance range:        0.15 to 60 μF

Rated voltage range:      630 to 2000 Vdc

Capacitance tolerance:   ± 5%, ± 10%

Dissipation factor:          ≤5×10^-4 Measured at 100 Hz and 20±5℃

Life expectancy:              100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

TEST METHODS AND PERFORMANCES

Dielectric strength:           1.5×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case: 3KVAC/50Hz for 10s

Insulation resistance(IR*C_N):  30000s but need not exceed 30GΩ, after 1 minute of electrification at 100VDC (20±5℃)

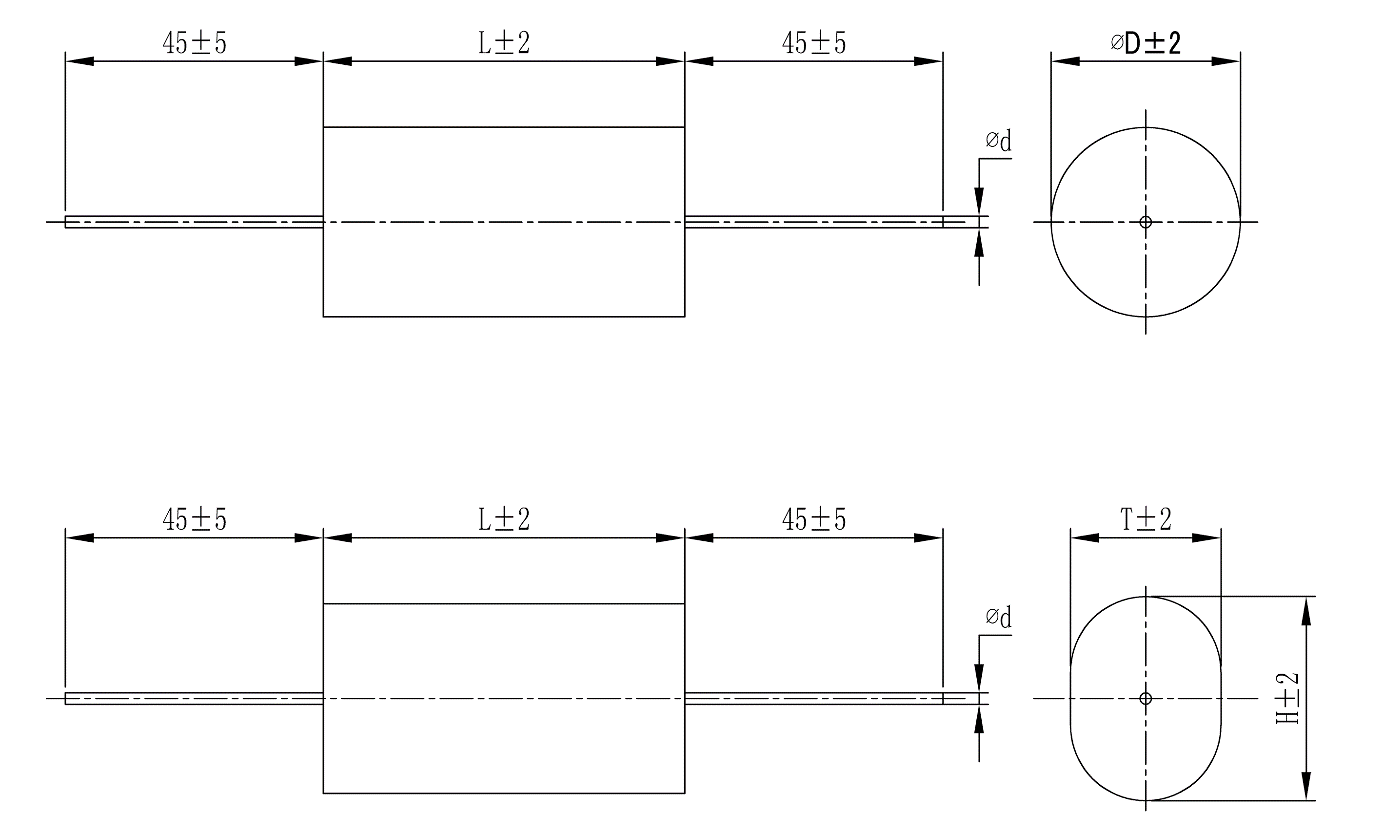

■OUTLINE DRAWING 外形图
