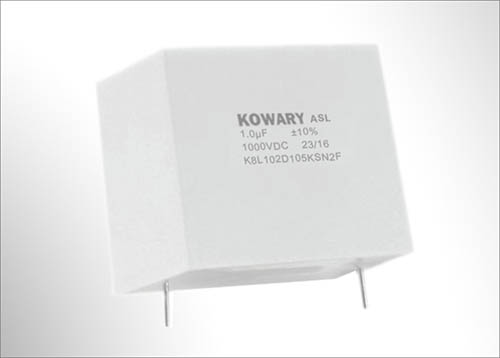

ASL (K8L) IGBT Snubber - High pulse

ASL (K8L) IGBT Snubber - High pulse

Short Description:

Capacitance range: 0.001 to 1.5 μF

Rated voltage range: 630 to 2000 Vdc

Applications: designed for snubber - high pulse

For high pulse and high frequency applications requiring extremely reliable contacts e.g. IGBT-applications.

Wind Power converter, Medium & High Frequency Induction Heating, Electric Vehicle, SVG, AP, Inverter.


Download as PDF

Product Detail

Product Tags

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071, IEC 60068

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Extended double side metallized carrier film with internal series connection and metallized film

Case 外壳材料                Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0).

Leads 引出端                 Tinned copper wire



■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           0.001 to 1.5 μF

Rated voltage range 额定电压          630 to 2000 Vdc

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤5×10-4 Measured at 100 Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at UNDC and 70 ℃(Hot-spot temperature)



■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×UNDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 10s

Insulation resistance(IR*CN)  绝缘电阻   30000s but need not exceed 30GΩ,

after 1 minute of electrification at 100VDC (20±5℃)

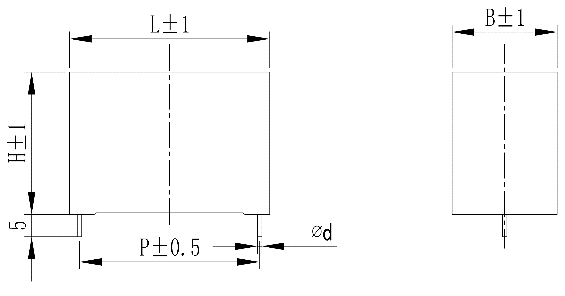

■OUTLINE DRAWING 外形图

ASL (K8L) IGBT Snubber - High pulse(图1)

■ELECTRICAL SPECIFICATION 规格型号参考                                                        Unit: mm

Part

Number

Capacitance

(μF)

Dimension

Du/dt

(v/μs)

L

B

H

P

d

UNDC   630Vdc, Urms 400Vac

K8L631D103KSN2H***

0.01

18.0

5.0

11.0

15.0

0.8

3300

K8L631D153KSN2H***

0.015

18.0

5.0

11.0

15.0

0.8

3300

K8L631D223KSN2H***

0.022

18.0

6.0

12.0

15.0

0.8

3300

K8L631D333KSN2H***

0.033

18.0

7.5

13.5

15.0

0.8

3300

K8L631D473KSN2H***

0.047

18.0

10.0

16.0

15.0

0.8

3300

K8L631D473KSN2T***

0.047

26.5

6.0

15.0

22.5

0.8

2050

K8L631D683KSN2T***

0.068

26.5

7.0

16.0

22.5

0.8

2050

K8L631D104KSN2T***

0.10

26.5

8.5

17.0

22.5

0.8

2050

K8L631D154KSN2T***

0.15

26.5

11.0

20.0

22.5

0.8

2050

K8L631D154KSN2V***

0.15

31.0

11.0

20.0

27.5

0.8

1500

K8L631D224KSN2V***

0.22

31.0

13.0

22.0

27.5

0.8

1500

K8L631D334KSN2V***

0.33

31.0

15.0

24.5

27.5

0.8

1500

K8L631D474KSN2V***

0.47

31.0

18.0

33.0

27.5

1.0

1500

K8L631D474KSN2F***

0.47

42.5

17.0

28.0

37.5

1.0

950

K8L631D684KSN2V***

0.68

31.0

18.0

33.0

27.5

1.0

1500

K8L631D684KSN2F***

0.68

42.5

17.0

28.0

37.5

1.0

950

K8L631D105KSN2F***

1.0

42.5

22.0

30.0

37.5

1.0

950

K8L631D155KSN2F***

1.5

42.5

28.0

37.0

37.5

1.0

950

UNDC 1000Vdc, Urms 600Vac

K8L102D472KSN2H***

0.0047

18.0

5.0

11.0

15.0

0.8

5500

K8L102D682KSN2H***

0.0068

18.0

5.0

11.0

15.0

0.8

5500

K8L102D103KSN2H***

0.01

18.0

6.0

12.0

15.0

0.8

5500

K8L102D153KSN2H***

0.015

18.0

7.5

13.5

15.0

0.8

5500

K8L102D223KSN2H***

0.022

18.0

8.5

14.5

15.0

0.8

5500


Part

Number

Capacitance

(μF)

Dimension

Du/dt

(v/μs)

L

B

H

P

d

UNDC 1000Vdc, Urms 600Vac

K8L102D223KSN2T***

0.022

26.5

6.0

15.0

22.5

0.8

2600

K8L102D333KSN2T***

0.033

26.5

7.0

16.0

22.5

0.8

2600

K8L102D473KSN2T***

0.047

26.5

8.5

17.0

22.5

0.8

2600

K8L102D683KSN2T***

0.068

26.5

10.0

18.5

22.5

0.8

2600

K8L102D104KSN2T***

0.10

26.5

13.0

22.0

22.5

0.8

2600

K8L102D104KSN2V***

0.10

31.0

11.0

20.0

27.5

0.8

1850

K8L102D154KSN2V***

0.15

31.0

13.0

22.0

27.5

0.8

1850

K8L102D154KSN2V***

0.15

31.0

13.0

22.0

27.5

0.8

1850

K8L102D224KSN2V***

0.22

31.0

15.0

24.5

27.5

0.8

1850

K8L102D334KSN2V***

0.33

31.0

18.0

33.0

27.5

1.0

1850

K8L102D334KSN2F***

0.33

42.5

15.0

26.0

37.5

1.0

1200

K8L102D474KSN2F***

0.47

42.5

17.0

28.0

37.5

1.0

1200

K8L102D684KSN2F***

0.68

42.5

22.0

30.0

37.5

1.0

1200

K8L102D105KSN2F***

1.0

42.5

28.0

37.0

37.5

1.0

1200

UNDC 1600Vdc, Urms 650Vac

K8L162D222KSN2H***

0.0022

18.0

5.0

11.0

15.0

0.8

7500

K8L162D332KSN2H***

0.0033

18.0

6.0

12.0

15.0

0.8

7500

K8L162D472KSN2H***

0.0047

18.0

7.5

13.5

15.0

0.8

7500

K8L162D682KSN2H***

0.0068

18.0

8.5

14.5

15.0

0.8

7500

K8L162D103KSN2H***

0.01

18.0

10.0

16.0

15.0

0.8

7500

K8L162D103KSN2T***

0.01

26.5

6.0

15.0

22.5

0.8

3800

K8L162D153KSN2T***

0.015

26.5

7.0

16.0

22.5

0.8

3800

K8L162D223KSN2T***

0.022

26.5

8.5

17.0

22.5

0.8

3800

K8L162D333KSN2T***

0.033

26.5

10.0

18.5

22.5

0.8

3800

K8L162D473KSN2T***

0.047

26.5

13.0

22.0

22.5

0.8

3800

K8L162D473KSN2V***

0.047

31.0

11.0

20.0

27.5

0.8

2700

K8L162D683KSN2V***

0.068

31.0

13.0

22.0

27.5

0.8

2700

K8L162D104KSN2V***

0.10

31.0

17.0

28.0

27.5

0.8

2700

K8L162D154KSN2V***

0.15

31.0

18.0

33.0

27.5

1.0

2700

K8L162D154KSN2F***

0.15

42.5

15.0

26.0

37.5

1.0

1700

K8L162D224KSN2F***

0.22

42.5

17.0

28.0

37.5

1.0

1700

K8L162D334KSN2F***

0.33

42.5

22.0

30.0

37.5

1.0

1700

K8L162D474KSN2F***

0.47

42.5

28.0

37.0

37.5

1.0

1700

UNDC 2000Vdc, Urms 700Vac

K8L202D102KSN2H***

0.0010

18.0

5.0

11.0

15.0

0.8

9000

K8L202D152KSN2H***

0.0015

18.0

5.0

11.0

15.0

0.8

9000

K8L202D222KSN2H***

0.0022

18.0

6.0

12.0

15.0

0.8

9000

K8L202D332KSN2T***

0.0033

26.5

6.0

15.0

22.5

0.8

6200

K8L202D472KSN2T***

0.0047

26.5

6.0

15.0

22.5

0.8

6200

K8L202D682KSN2H***

0.0068

18.0

10.0

16.0

15.0

0.8

9000

K8L202D682KSN2T***

0.0068

26.5

6.0

15.0

22.5

0.8

6200

K8L202D103KSN2T***

0.01

26.5

8.5

17.0

22.5

0.8

6200

K8L202D153KSN2T***

0.015

26.5

10.0

18.5

22.5

0.8

6200

K8L202D223KSN2T***

0.022

26.5

13.0

22.0

22.5

0.8

6200

K8L202D223KSN2V***

0.022

31.0

11.0

20.0

27.5

0.8

4200

K8L202D333KSN2V***

0.033

31.0

13.0

22.0

27.5

0.8

4200

K8L202D473KSN2V***

0.047

31.0

15.0

24.5

27.5

0.8

4200

K8L202D683KSN2V***

0.068

31.0

14.0

28.0

27.5

0.8

4200

K8L202D104KSN2V***

0.10

31.0

18.0

33.0

27.5

1.0

4200

K8L202D104KSN2F***

0.10

42.5

15.0

26.0

37.5

1.0

2600

K8L202D154KSN2F***

0.15

42.5

22.0

30.0

37.5

1.0

2600

K8L202D224KSN2F***

0.22

42.5

28.0

37.0

37.5

1.0

2600

K8L202D334KSN2F***

0.33

42.5

28.0

37.0

37.5

1.0

2600

Remark: 1. *** Internal code.

2. Customization for special specification and requirement is available.
