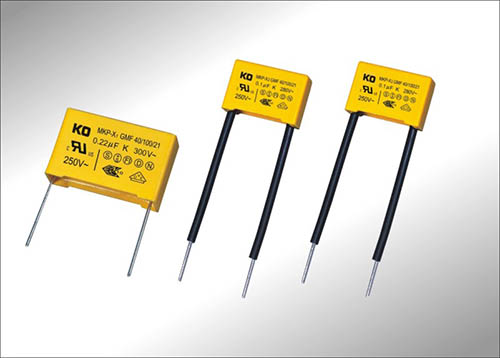

X2-ATH （K3T) Interference Suppression Capacitor

X2-ATH （K3T) Interference Suppression Capacitor

Short Description:

Rated Voltage: 275VAC/305VAC/310VAC, 50/60Hz

 Capacitance Range: 0.001µF ~ 4.7µF

Applications:

For connection in series with the mains and capacitive divider power supply, such as energy meter, LED driver, etc.





Download as PDF

Product Detail

Product Tags

General Technical Characteristics

Metallized polypropylene film.

High stability of capacitance under severe ambient condition, such as high humidity and high temperature.

Excellent active and passive flame resistant abilities.

Electrical Characteristics

Reference Standard:             IEC60384-14

Climatic Category:                40/110/56/B

Operating Temperature Range:  -40°C ~ +110°C

Rated Voltage:                     275VAC/305VAC/310VAC, 50/60Hz

Capacitance Range:             0.001µF ~ 4.7µF

Capacitance Tolerance:       ±10%(K), ±20%(M)

Dissipation Factor:              ≤0.1%max Measured at 1KHz and 25°C

   Voltage Proof:                       Between Terminals: 4.3UR(VDC)/(60S)

                                                 Between Terminals to Case: 2120VAC (60S)

   Dissipation Factor:                ≤0.1%max Measured at 1KHz and 25°C

   Insulation Resistance:          ≥15 000MΩ, for CN≤0.33µF

                                                ≥5 000s, for CN>0.33µF Measured at 20°C, 100V and 1 min.

 THB test (Damp heat test with loading):   Temperature: 85±2°C; Humidity: 85±2% RH

                       :                                           Loading Voltage: 240VAC(50Hz/60Hz); Duration: 500 hours

                                                                 Capacitance change: (△C/C) ≤10%; △DF≤0.5% (1KHz); IR≥50%

Electrical Specification & Part Numbers Reference                                  Unit: mm (max)

Cap.

 (μF)

275VAC/305VAC/310VAC (mm)

Part Number

W

H

T

P

d

0.010

13.0

9.0

4.0

10.0

0.6

K3TQ2103*********

0.012

13.0

9.0

4.0

10.0

0.6

K3TQ2123*********

0.015

13.0

9.0

4.0

10.0

0.6

K3TQ2153*********

0.018

13.0

9.0

4.0

10.0

0.6

K3TQ2183*********

0.022

13.0

9.0

4.0

10.0

0.6

K3TQ2223*********

0.027

13.0

11.0

5.0

10.0

0.6

K3TQ2273*********

0.033

13.0

11.0

5.0

10.0

0.6

K3TQ2333*********

0.039

13.0

11.0

5.0

10.0

0.6

K3TQ2393*********

0.047

13.0

11.0

5.0

10.0

0.6

K3TQ2473*********

0.056

13.0

12.0

6.0

10.0

0.6

K3TQ2563*********

0.068

13.0

12.0

6.0

10.0

0.6

K3TQ2683*********

0.082

13.0

13.0

7.0

10.0

0.6

K3TQ2823*********

0.10

13.0

14.0

8.0

10.0

0.6

K3TQ2104*********

0.010

17.5

9.5

5.0

15.0

0.6

K3TQ2103*********

0.012

17.5

9.5

5.0

15.0

0.6

K3TQ2123*********

0.015

17.5

9.5

5.0

15.0

0.6

K3TQ2153*********

0.018

17.5

9.5

5.0

15.0

0.6

K3TQ2183*********

0.022

17.5

9.5

5.0

15.0

0.6

K3TQ2223*********

0.027

17.5

9.5

5.0

15.0

0.6

K3TQ2273*********

0.033

17.5

9.5

5.0

15.0

0.6

K3TQ2333*********

0.039

17.5

9.5

5.0

15.0

0.6

K3TQ2393*********

0.047

17.5

9.5

5.0

15.0

0.6

K3TQ2473*********

0.056

17.5

9.5

5.0

15.0

0.6

K3TQ2563*********

0.068

17.5

11.0

5.0

15.0

0.6

K3TQ2683*********

0.082

17.5

11.0

5.0

15.0

0.6

K3TQ2823*********

0.10

17.5

12.0

6.0

15.0

0.6

K3TQ2104*********

0.12

17.5

12.0

6.0

15.0

0.6

K3TQ2124*********

0.15

17.5

13.5

7.5

15.0

0.6

K3TQ2154*********

0.18

17.5

13.5

7.5

15.0

0.6

K3TQ2184*********

0.22

17.5

14.5

8.5

15.0

0.6

K3TQ2224*********

0.27

17.5

16.0

10.0

15.0

0.8

K3TQ2274*********

0.33

17.5

16.0

10.0

15.0

0.8

K3TQ2334*********

0.39

17.5

19.0

11.0

15.0

0.8

K3TQ2394*********

0.47

17.5

19.0

11.0

15.0

0.8

K3TQ2474*********



Cap.

 (μF)

275VAC/305VAC/310VAC (mm)

Part Number

W

H

T

P

d

0.10

26.5

15.0

6.0

22.5

0.8

K3TQ2104*********

0.12

26.5

15.0

6.0

22.5

0.8

K3TQ2124*********

0.15

26.5

15.0

6.0

22.5

0.8

K3TQ2154*********

0.18

26.5

15.0

6.0

22.5

0.8

K3TQ2184*********

0.22

26.5

15.0

6.0

22.5

0.8

K3TQ2224*********

0.27

26.5

16.0

7.0

22.5

0.8

K3TQ2274*********

0.33

26.5

16.0

7.0

22.5

0.8

K3TQ2334*********

0.39

26.5

17.0

8.5

22.5

0.8

K3TQ2394*********

0.47

26.5

17.0

8.5

22.5

0.8

K3TQ2474*********

0.56

26.5

18.5

10.0

22.5

0.8

K3TQ2564*********

0.68

26.5

18.5

10.0

22.5

0.8

K3TQ2684*********

0.82

26.5

20.0

11.0

22.5

0.8

K3TQ2824*********

1.0

26.5

22.0

12.0

22.5

0.8

K3TQ2105*********

1.2

26.5

23.0

13.5

22.5

0.8

K3TQ2125*********

1.5

26.5

24.5

15.5

22.5

0.8

K3TQ2155*********

1.5

26.5

29.5

14.5

22.5

0.8

K3TQ2155*********

0.39

32.0

18.0

9.0

27.5

0.8

K3TQ2394*********

0.47

32.0

18.0

9.0

27.5

0.8

K3TQ2474*********

0.56

32.0

18.0

9.0

27.5

0.8

K3TQ2564*********

0.68

32.0

18.0

9.0

27.5

0.8

K3TQ2684*********

0.82

32.0

20.0

11.0

27.5

0.8

K3TQ2824*********

1.0

32.0

20.0

11.0

27.5

0.8

K3TQ2105*********

1.2

32.0

22.0

13.0

27.5

0.8

K3TQ2125*********

1.5

32.0

25.0

13.0

27.5

0.8

K3TQ2155*********

1.8

32.0

28.0

14.0

27.5

0.8

K3TQ2185*********

2.2

32.0

28.0

14.0

27.5

0.8

K3TQ2225*********

1.0

41.0

22.0

11.0

37.5

1.0

K3TQ2105*********

1.2

41.0

22.0

11.0

37.5

1.0

K3TQ2125*********

1.5

41.0

24.0

13.0

37.5

1.0

K3TQ2155*********

1.8

41.0

24.0

13.0

37.5

1.0

K3TQ2185*********

2.2

42.0

28.0

14.0

37.5

1.0

K3TQ2225*********

2.2

41.0

26.0

15.0

37.5

1.0

K3TQ2225*********

Remark：

1. “*********”= Capacitance tolerance code, Pitch, Lead form and packaging code, Lead form, Lead length, Internal code.

2. Customization for special specification and requirement is available.
