■General Technical Characteristics 一般特性

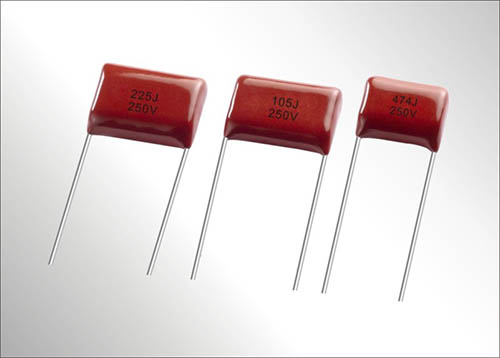

Metallized polyester film, non-inductive wound construction

金属化聚酯膜、无感卷绕结构

Wide capacitance range, small size, and light weight

容量范围宽、体积小、重量轻

Long life due to self-healing effect

自愈性好、寿命长

Flame retardation epoxy resin coated

阻燃性环氧粉末包封

■Electrical Characteristics 电气特性

Reference Standard 引用标准:           IEC60384-2

Climatic Category 气候类别:             55/105/21

Rated Temperature 额定温度:           85°C

Operating Temperature Range:           -55°C ~ 105°C

工作温度范围:                          (+85°C to +105°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage 额定电压:               50/63VDC, 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1250VDC

Capacitance Range 电容量范围:         0.010µF ~ 10.0µF

Capacitance Tolerance 电容量偏差:      ±5% (J), ±10%(K)

Dissipation Factor 损耗角正切:           ≤1.0% Measured at 1KHz and 20°C.

Test Voltage 耐电压:                          1.6U_R for 5 sec.

Insulation Resistance 绝缘电阻:          U_R≤100V: ≥3750MΩ,  for C_N≤0.33µF

                                                       ≥1250s,    for C_N>0.33µF Measured at 20°C, 10V and 1 min.

                 U_R>100V: ≥30000MΩ, for C_N≤0.33µF

                                                     ≥5000s,    for C_N>0.33µF Measured at 20°C, 100V and 1 min.
