General Technical Characteristics

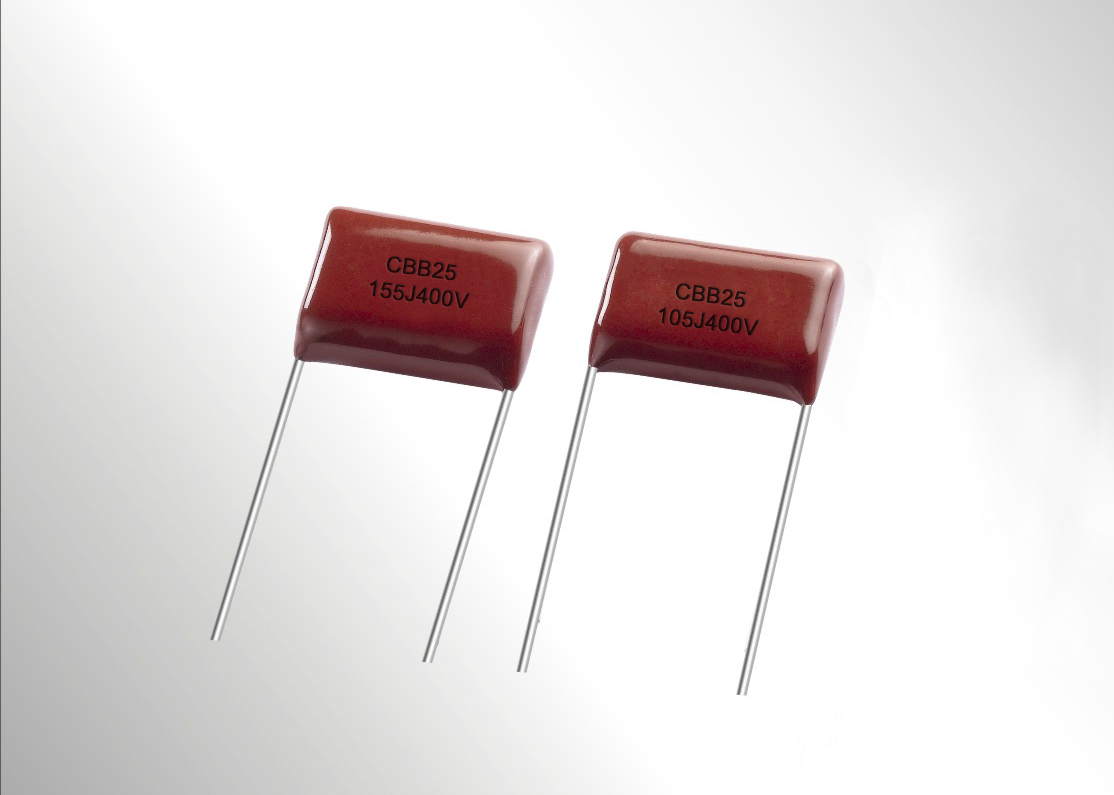

Metallized polypropylene film.

Small volume with good self-healing property.

Low dissipation at high frequency, low temperature rise.

High voltage resistance, excellent ability to withstand charging-discharging process.

Electrical Characteristics

Reference Standard :            GB/T 10190 (IEC60384-2)

Climatic Category :                40/110/56

Rated T47emperature :          85°C for V_R(DC); 75°C for VR(AC)

Operating Temperature Range:  -40°C ~ 105°C

                                                (+85°C to +105°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage:                      250VDC, 400VDC, 450VDC, 630VDC, 1000VDC

 Capacitance Range :           0.47µF ~ 2.2µF

Capacitance Tolerance :       ±5%(J), ±10%(K),

Dissipation Factor :              ≤10x10^-4 Measured at 1KHz and 20°C

Test Voltage :                       1.6U_R for 5 sec and 20°C.

Insulation Resistance :         ≥30000MΩ C_R≤ 0.33 µF; ≥1000S, C_R>0.33 µF.  Measured at 20°C, 100V and 1 min.

Electrical Specification & Part Numbers Reference                                  Unit: mm (max)

Remark：

1. “*********”= Capacitance tolerance code, Pitch, Lead form and packaging code, Lead form, Lead length, Internal code.

2. Customization for special specification and requirement is available.
