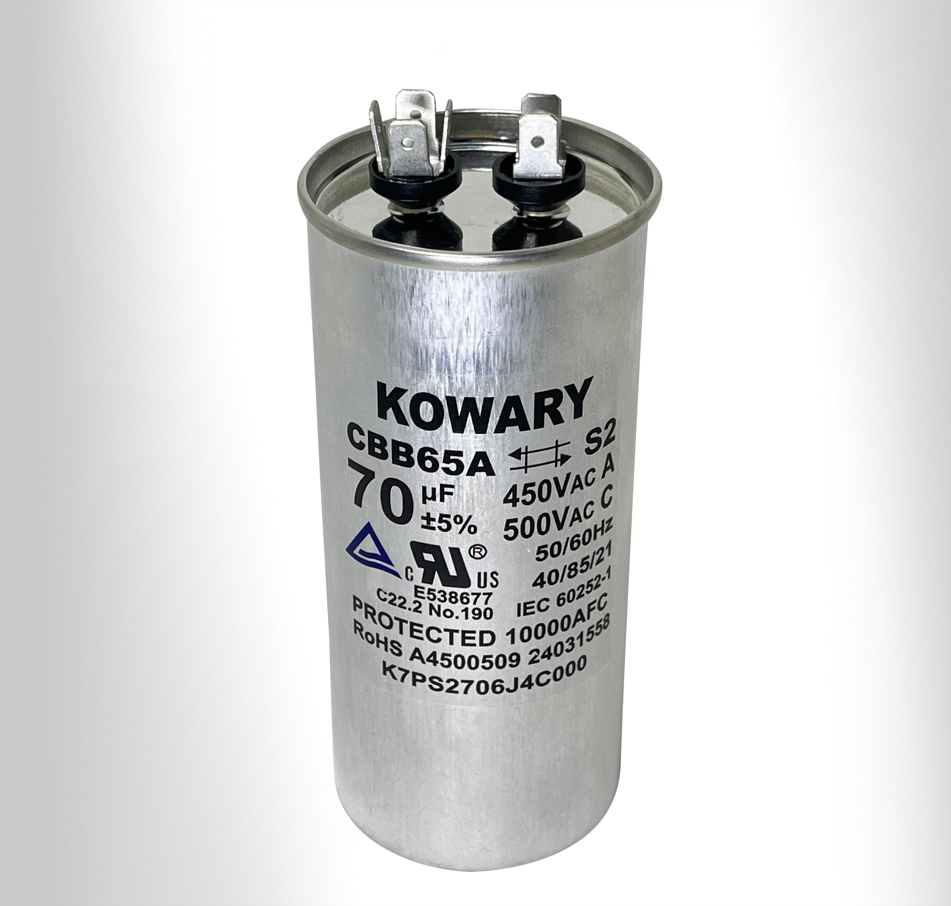

CBB65 (K7P) Metallized polypropylene film AC motor capacitor(column, aluminum case, anti-explosion)
■General Technical Characteristics 一般特性
Self-healing property
良好的自愈性
Excellent stable performance and reliability
性能稳定，可靠性强
Anti-explosion design, more safety
防爆设计更安全
Electrical Characteristics 电气特性
Reference Standard 引用标准: | GB/T 3667.1 (IEC60252-1) |
Climatic Category 气候类别: | 40/70/21 |
Class of Operation 运行等级: | Class B (10 000h); Class C (3 000h) |
Rated Voltage 额定电压: | CBB65A-1: 200VAC ~ 550VAC CBB65A-2: 400 VAC ~ 450VAC |
Capacitance Range 电容量范围: | CBB65A-1: 5.0µF ~ 85.0µF, 5.5+8µF ~ 80+15µF CBB65A-2: 1.0µF ~ 20.0µF |
Capacitance Tolerance 电容量偏差: | ±5% (J), ±10%(K), ±20%(M) |
Class of Safety Protection 安全防护等级:
Overpressure sensitive disconnection device: | CBB65A-1: P2/S2 CBB65A-2: P2/S3 Protected up to 10.000AFC as per UL810 |
Dissipation Factor 损耗角正切: | ≤0.2% Measured at 50Hz~100Hz ≤0.6% Measured at 1KHz, CN≤33µF ≤0.8% Measured at KHz, CN>33µF |
Test Voltage 耐电压: | Between Terminals: 900VAC (2S) Between Terminals to Case: 3 000VAC (60S) |
Insulation Resistance 绝缘电阻: | ≥3 000s (20°C, 100V, 1min.) |
