1 Product Application

1.1 Impulse voltage generator, impulse current generator, impulse voltage divider and other non-continuous pulse devices.

1.2 Oscillation circuit, continuous pulse device.

1.3 DC high voltage equipment and rectifier filter device.

 2 Product Features

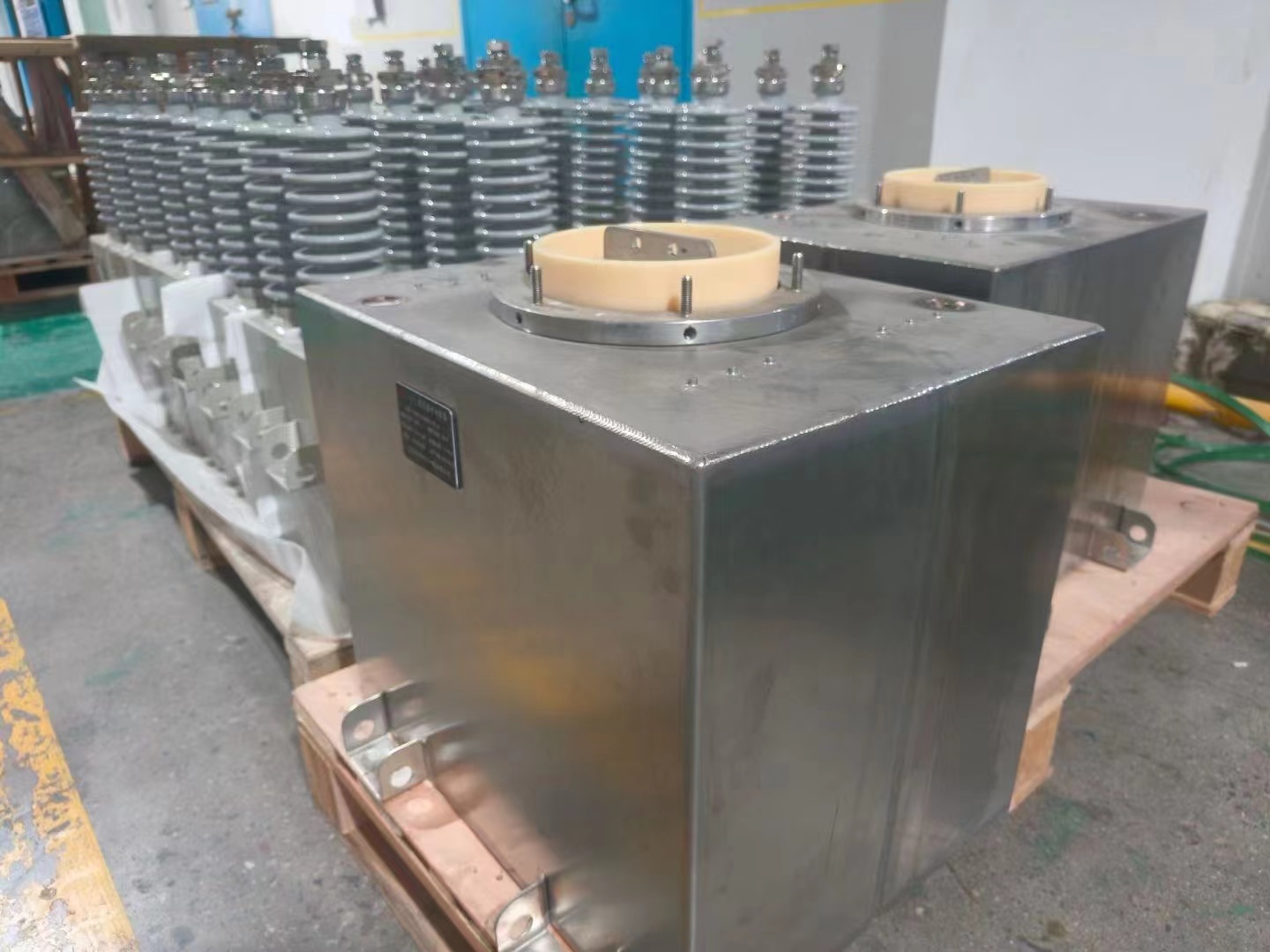

This capacitor uses roughened polypropylene film as the medium, specific aluminum foil as the electrode, and wound by non-inductive winding.

High vacuum drying and impregnation technology is used to remove all residual moisture and air in the capacitor, and the impregnating agent filled has good insulation performance and low temperature resistance.

It can withstand the impact of instantaneous large current and high voltage, with no capacity attenuation, good heat dissipation performance, and good low temperature resistance.

3 Implementation standards

JB/T 8168-1999 Pulse capacitors and DC capacitors

4 Technical parameters

4.1 Ambient temperature: -40℃～+85℃

4.2 Relative humidity: ≤75%

4.3 Voltage range: 0.5kVdc-100kVdc

4.4 Capacitance range: 0.05～1000µF

4.5 Capacitance tolerance: ±5%, ±10%

4.6 Loss tangent value (tanδ):≤0.0009 @1kHz

4.7 Insulation resistance between terminals: When C≤1µF R≥1000MΩ; when C>1µF RC≥1000S.

4.8 Test voltage between terminals: The dielectric between the capacitor terminals should be able to withstand the DC test voltage specified in Table 1 for 1min.

Table 1

4.10 Product sealing test: No leakage for at least 4 hours at a constant temperature of 75+5℃.

4.11 Inter-terminal charge and discharge test: Under rated voltage, it can withstand 100,000 DC inter-terminal charge and discharge without breakdown and capacitance attenuation.
