AGS (K1S) High Voltage Capacitor

AGS (K1S) High Voltage Capacitor

Short Description:

Capacitance range: 0.0015 to 0.47 μF

Rated voltage range: 4KVdc to 15KVdc

Applications: High Voltage, high frequency, high pulse.

Applied in high DC voltage, voltage multipliers, medical equipment, high frequency power supply.

Download as PDF

Product Detail

Product Tags

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071, IEC 60068

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Dry construction, Non-inductive type

Case 外壳材料                 Polyester tape wrapping; UL94V-0 resin filling

Leads 引出端                  Tinned copper wire

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           0.0015 to 0.47 μF

Rated voltage range 额定电压          4KV to 15K Vdc

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤8×10-4 Measured at 1000 Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at UNDC and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×UNDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 60s

Insulation resistance(IR*CN)  绝缘电阻   30000s but need not exceed 30GΩ,

after 1 minute of electrification at 100Vdc (20±5℃)

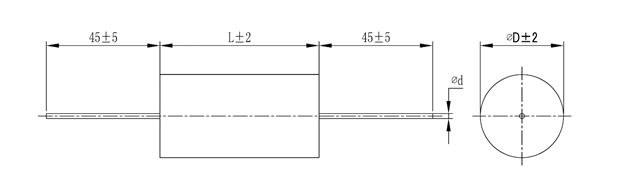

■OUTLINE DRAWING 外形图

AGS (K1S) High Voltage Capacitor(图1)

■ELECTRICAL SPECIFICATION 规格型号参考                                                        Unit: mm

Part

Number

Capacitance

(μF)

Dimension (mm)

Du/dt

(v/μs)

Ipeak

(A)

Urms

(VAC)

L

D

d

UNDC 4000 Vdc, Us 6000   Vdc

K1S402D333KR44N2***

0.033

44.0

12.0

0.8

600

19.8

1600

K1S402D473KR44N2***

0.047

44.0

14.0

0.8

600

28.2

1600

K1S402D683KR44N2***

0.068

44.0

16.5

1.0

600

40.8

1600

K1S402D104KR44N2***

0.10

44.0

19.5

1.0

600

60

1600

K1S402D154KR44N2***

0.15

44.0

23.5

1.2

600

90

1600

K1S402D224KR44N2***

0.22

44.0

28.0

1.2

600

132

1600

K1S402D334KR44N2***

0.33

44.0

34.5

1.2

600

198

1600

K1S402D474KR44N2***

0.47

44.0

40.5

1.2

600

282

1600

Part

Number

Capacitance

(μF)

Dimension (mm)

Du/dt

(v/μs)

Ipeak

(A)

Urms

(VAC)

L

D

d

UNDC 5000 Vdc, Us 7500   Vdc

K1S502D223KR44N2***

0.022

44.0

12.5

0.8

700

15.4

2000

K1S502D333KR44N2***

0.033

44.0

14.5

0.8

700

23.1

2000

K1S502D473KR44N2***

0.047

44.0

17.0

1.0

700

32.9

2000

K1S502D683KR44N2***

0.068

44.0

20.0

1.0

700

47.6

2000

K1S502D104KR44N2***

0.10

44.0

24.0

1.2

700

70

2000

K1S502D154KR44N2***

0.15

44.0

29.0

1.2

700

105

2000

K1S502D224KR44N2***

0.22

44.0

35.0

1.2

700

154

2000

K1S502D334KR44N2***

0.33

44.0

42.5

1.2

700

231

2000

UNDC 6000 Vdc , Us   9000 Vdc

K1S602D333KR57N2***

0.033

57.0

14.5

0.8

900

29.7

2400

K1S602D473KR57N2***

0.047

57.0

17.0

0.8

900

42.3

2400

K1S602D683KR57N2***

0.068

57.0

19.5

1.0

900

61.2

2400

K1S602D823KR57N2***

0.082

57.0

21.5

1.2

900

73.8

2400

K1S602D104KR57N2***

0.10

57.0

23.5

1.2

900

90

2400

K1S602D154KR57N2***

0.15

57.0

28.5

1.2

900

135

2400

K1S602D224KR57N2***

0.22

57.0

34.5

1.2

900

198

2400

K1S602D334KR57N2***

0.33

57.0

41.5

1.2

900

297

2400

UNDC 8000 Vdc , Us   12000 Vdc

K1S802D332KR50N2***

0.0033

50.0

10.5

0.8

1200

3.96

3200

K1S802D472KR50N2***

0.0047

50.0

12.0

0.8

1200

5.64

3200

K1S802D682KR50N2***

0.0068

50.0

14.0

0.8

1200

8.16

3200

K1S802D822KR50N2***

0.0082

50.0

15.0

0.8

1200

9.84

3200

K1S802D103KR50N2***

0.010

50.0

16.0

1.0

1200

12

3200

K1S802D153KR50N2***

0.015

50.0

19.5

1.0

1200

18

3200

K1S802D223KR50N2***

0.022

50.0

23.0

1.2

1200

26.4

3200

K1S802D333KR50N2***

0.033

50.0

28.0

1.2

1200

39.6

3200

K1S802D473KR50N2***

0.047

50.0

33.0

1.2

1200

56.4

3200

K1S802D473KR80N2***

0.047

80.0

21.0

1.2

1100

51.7

3200

K1S802D683KR80N2***

0.068

80.0

24.5

1.2

1100

74.8

3200

K1S802D104KR80N2***

0.10

80.0

29.0

1.2

1100

110

3200

K1S802D154KR80N2***

0.15

80.0

34.5

1.2

1100

165

3200

K1S802D224KR80N2***

0.22

80.0

41.0

1.2

1100

242

3200

UNDC 10000 Vdc , Us   15000 Vdc

K1S103D472KR60N2***

0.0047

60.0

12.0

0.8

1500

7.05

4000

K1S103D682KR60N2***

0.0068

60.0

13.5

0.8

1500

10.2

4000

K1S103D103KR60N2***

0.010

60.0

16.0

1.0

1500

15

4000

K1S103D153KR60N2***

0.015

60.0

19.0

1.0

1500

22.5

4000

K1S103D223KR60N2***

0.022

60.0

23.0

1.2

1500

33

4000

K1S103D333KR60N2***

0.033

60.0

27.5

1.2

1500

49.5

4000

   K1S103D473KR60N2***

0.047

60.0

32.5

1.2

1500

70.5

4000

UNDC 15000 Vdc , Us   22500 Vdc

K1S153D222KR60N2***

0.0022

60.0

12.0

0.8

2000

4.4

6000

K1S153D332KR60N2***

0.0033

60.0

14.0

0.8

2000

6.6

6000

K1S153D472KR60N2***

0.0047

60.0

16.5

1.0

2000

9.4

6000

K1S153D682KR60N2***

0.0068

60.0

19.5

1.2

2000

13.6

6000

K1S153D103KR60N2***

0.010

60.0

23

1.2

2000

20

6000

K1S153D153KR60N2***

0.015

60.0

28

1.2

2000

30

6000

   K1S153D223KR60N2***

0.022

60.0

33.5

1.2

2000

44

6000

Remark: 1. *** Internal code.

      2. Customization for special specification and requirement is available.
