AGR (K1R) High Current Resonance Capacitor

AGR (K1R) High Current Resonance Capacitor

Short Description:

Capacitance range: 0.5 to 12 μF

Rated voltage range: 400 to 700 Vac

Applications: High current resonance

Widely used in power electronic devices in series/parallel resonant circuit.

Welding, power supplies, induction heating equipment resonance occasions.



Download as PDF

Product Detail

Product Tags

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071, IEC 60068

Dielectric 介质材料             Polypropylene film

Construction 封装结构          Dry construction, Non-inductive type

Case 外壳材料                 Polyester tape wrapping; UL94V-0 resin filling

Output 引出端                 Threaded insert M6 or M8



■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           0.5 to 12μF

Rated voltage range 额定电压          400 to 700 Vac

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤5×10-4 Measured at 1000 Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at UN and 70 ℃(Hot-spot temperature)



■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×Urms (AC) applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   3KVAC/50Hz for 60s

Insulation resistance(IR*CN)  绝缘电阻   30000s but need not exceed 30GΩ,

after 1 minute of electrification at 100Vdc (20±5℃)

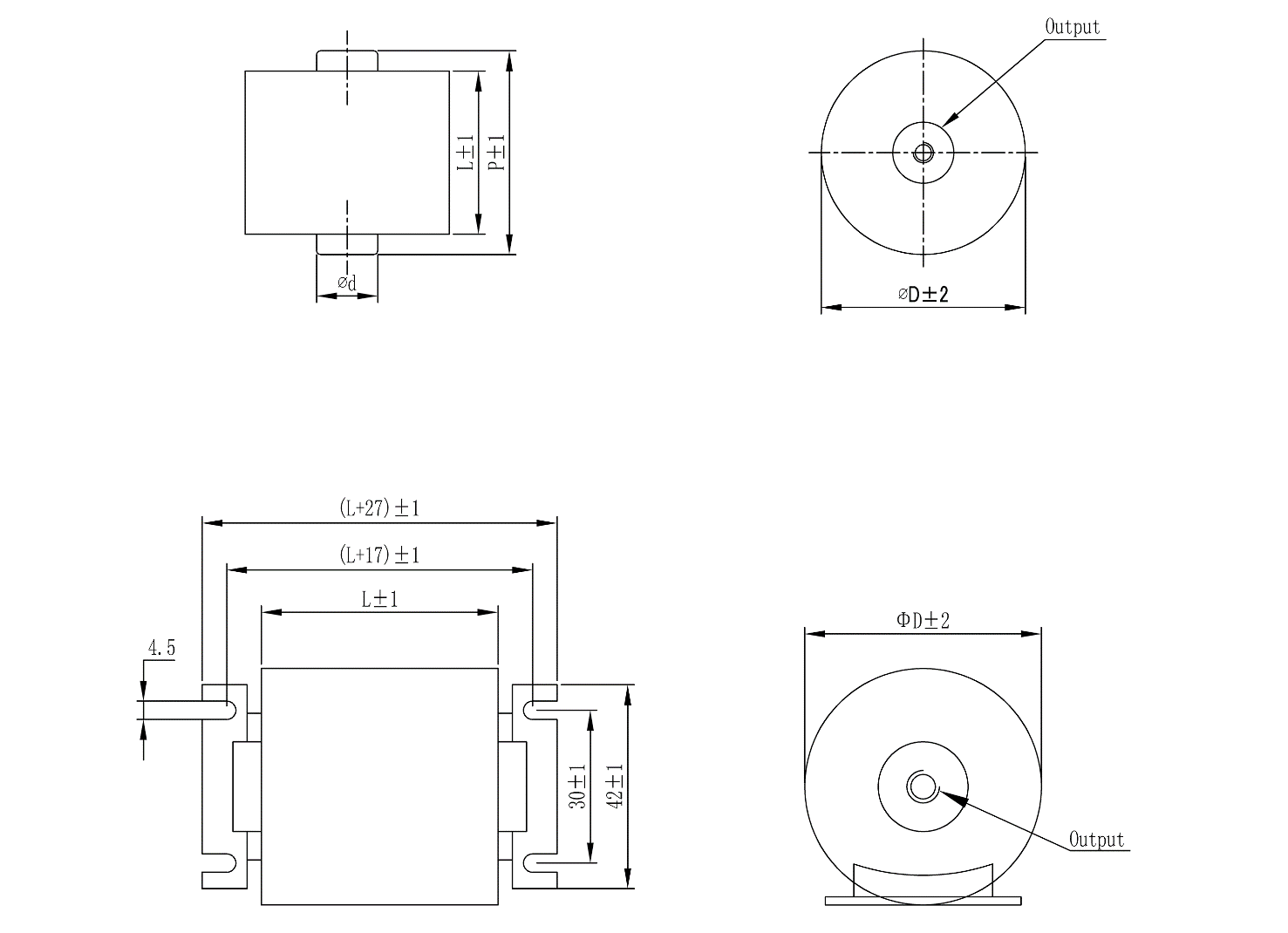

■OUTLINE DRAWING 外形图

AGR (K1R) High Current Resonance Capacitor(图1)

■ELECTRICAL SPECIFICATION 规格型号参考                                                        Unit: mm

Part

Number

Capacitance

(μF)

Dimension

Du/dt

(v/μs)

Imax@60℃

10KHz(A)

ESR@10KHz

(mΩ)

Rth

(K/W)

D

L

P

Output

Urms 400Vac, UNDC 1000Vdc, Upeak 565V

K1R401A155KRF##***

1.5

44.0

37.0

48

M6*8

540

43

2.0

11.0

K1R401A305KRF##***

3.0

54.0

40.0

52

M6*8

490

57

1.8

7.4

K1R401A405KRF##***

4.0

62.0

40.0

52

M6*8

490

66

1.8

6.0

K1R401A605KRF##***

6.0

76.0

40.0

52

M8*8

490

83

1.7

4.3

K1R401A705KRF##***

7.0

82.0

40.0

52

M8*8

490

90

1.7

3.8

K1R401A126KRF##***

12

82.0

50.0

63

M8*8

410

96

1.8

3.2

Urms 500Vac, UNDC 1200Vdc, Upeak 710V

K1R501A105KRF##***

1.0

43.0

37.0

48

M6*8

660

40

2.7

11.4

K1R501A205KRF##***

2.0

49.0

40.0

52

M6*8

570

49

2.3

8.6

K1R501A305KRF##***

3.0

60.0

40.0

52

M6*8

570

62

1.9

6.4

K1R501A405KRF##***

4.0

59.0

40.0

52

M8*8

570

73

1.9

5.1

K1R501A505KRF##***

5.0

76.0

40.0

52

M8*8

570

82

1.8

4.3

K1R501A605KRF##***

6.0

83.0

40.0

52

M8*8

570

91

1.8

3.7

K1R501A106KRF##***

10

84.0

50.0

63

M8*8

470

95

2.5

3.2

Urms 700Vac, UNDC   2000Vdc, Upeak 990V

K1R701A504KRF##***

0.50

42.0

37.0

48

M6*8

1190

36

2.7

11.7

K1R701A105KRF##***

1.0

54.0

40.0

52

M6*8

1190

50

2.5

7.5

K1R701A155KRF##***

1.5

66.0

40.0

52

M8*8

1190

64

2.3

5.5

K1R701A205KRF##***

2.0

76.0

40.0

52

M8*8

1190

77

2.0

4.4

K1R701A255KRF##***

2.5

85.0

40.0

52

M8*8

1190

87

1.9

3.6

K1R701A405KRF##***

4.0

84.0

50.0

63

M8*8

840

87

2.3

3.2

Remark: 1. ## Output size and style; *** Internal code.

      2. Customization for special specification and requirement is available.
