IGBT/GTO Snubber Capacitors
-
AHD (K5D) Damping Capacitor
Rated Voltage: 1700Vdc to 10000 Vdc / 1000Vac to 7000 Vdc
Capacitance Range: 0.1 to 10μF
Applications:
Mainly used to limit the excessive voltage rise rate of the circuit and protect the switching and protection of semiconductors in power
Primarily used to limit the excessive voltage rise rate in circuits, thereby protecting the semiconductor components and switching circuits in electrical power equipment. It also serves a function of filtering and energy storage. Its main application areas include dampening and absorbing energy from devices such as rectifiers, SVC units, high-power switching power supplies, high-power frequency converters, and locomotive power systems.
-

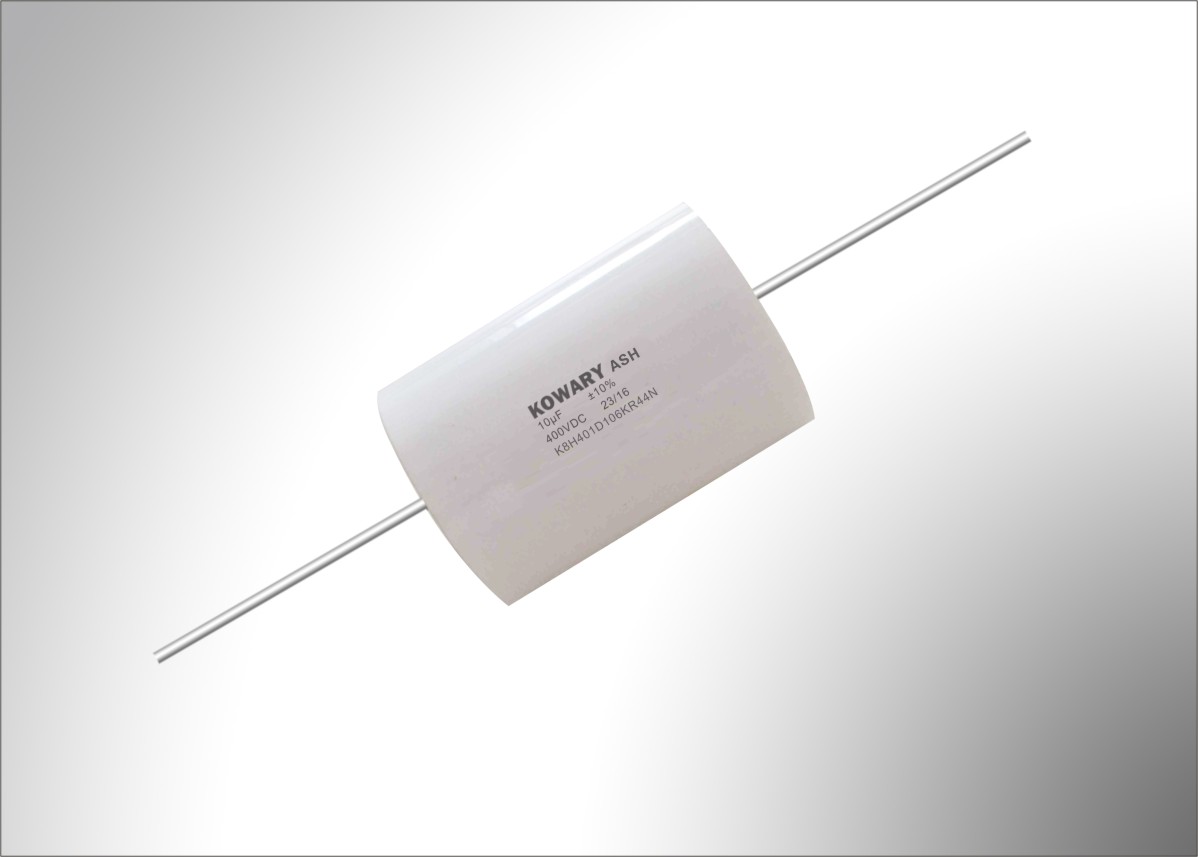

ASH (K8H) Switching Capacitor
Capacitance range: 0.15 to 60 μF
Rated voltage range: 250 to 850 Vdc
Applications: For switching.
Widely used in power electronic equipment when the peak voltage, peak current absorption protection.
-

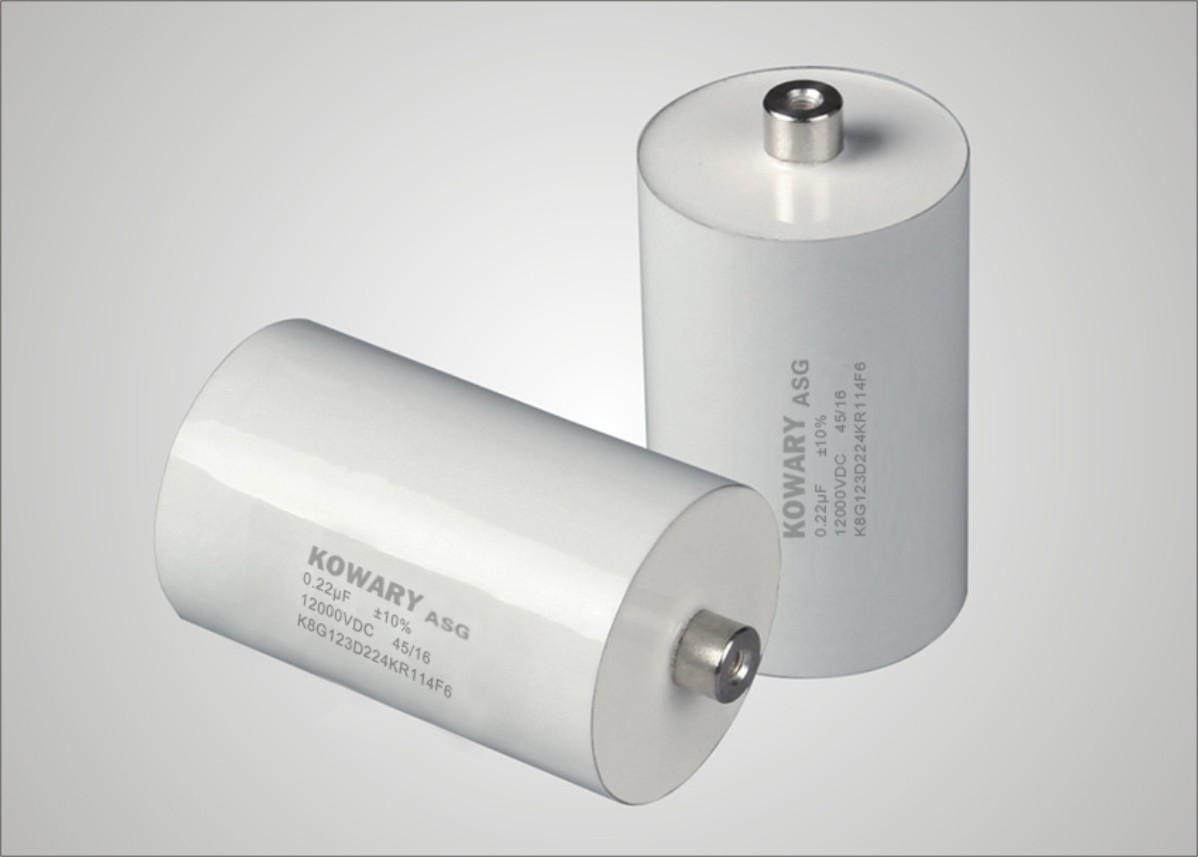

ASG (K8G) Absorption Capacitor / GTO Snubber
Capacitance range: 0.068 to 3.0 μF
Rated voltage range: 4K to 20K Vdc
Applications: Absorption Capacitors
Mainly used in power electronic equipments for absorption protection on the rectifying tube of the main rectifier device, thyristors and GTO.
-

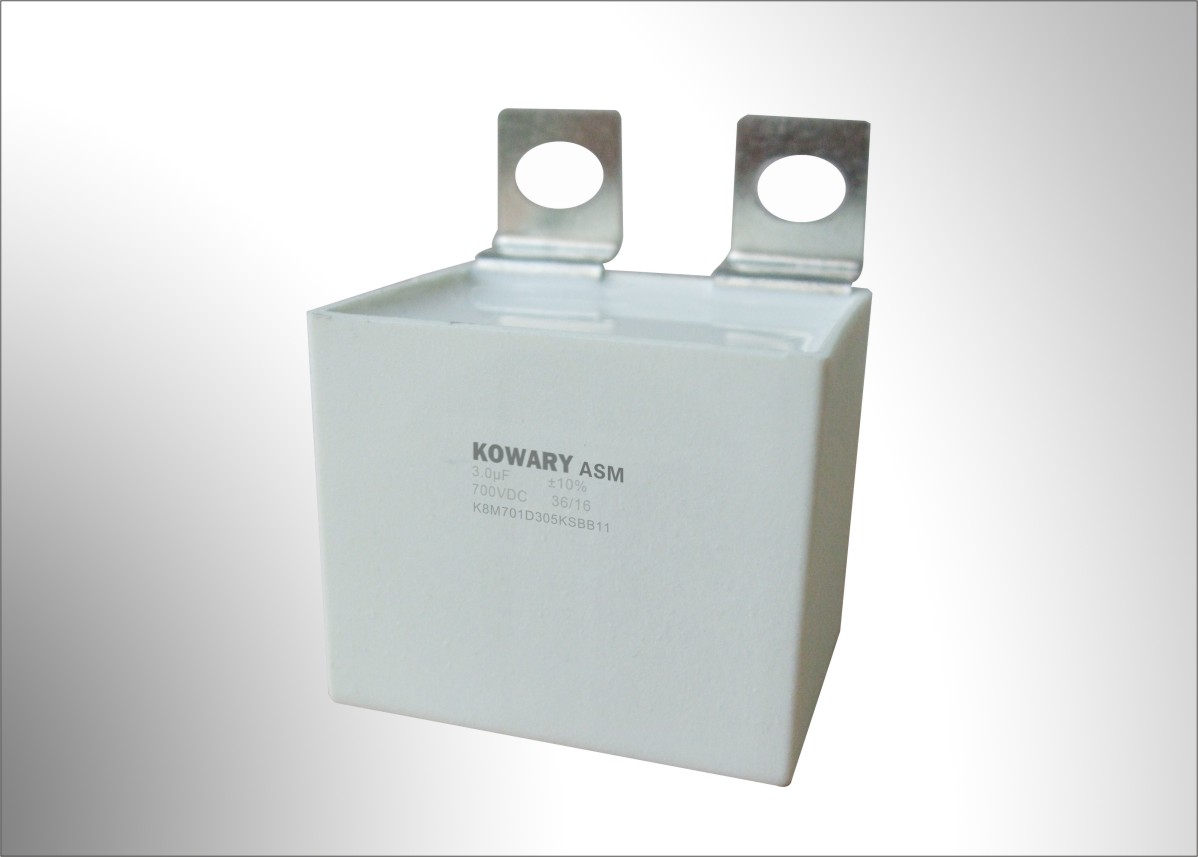

ASM (K8M) IGBT Snubber Capacitor
Capacitance range: 0.047 to 10 μF
Rated voltage range: 700 to 3000 Vdc
Applications: designed for IGBT Snubber
Applied in Electronic ballasts, Snubbering, Switch-mode power supplies.
-

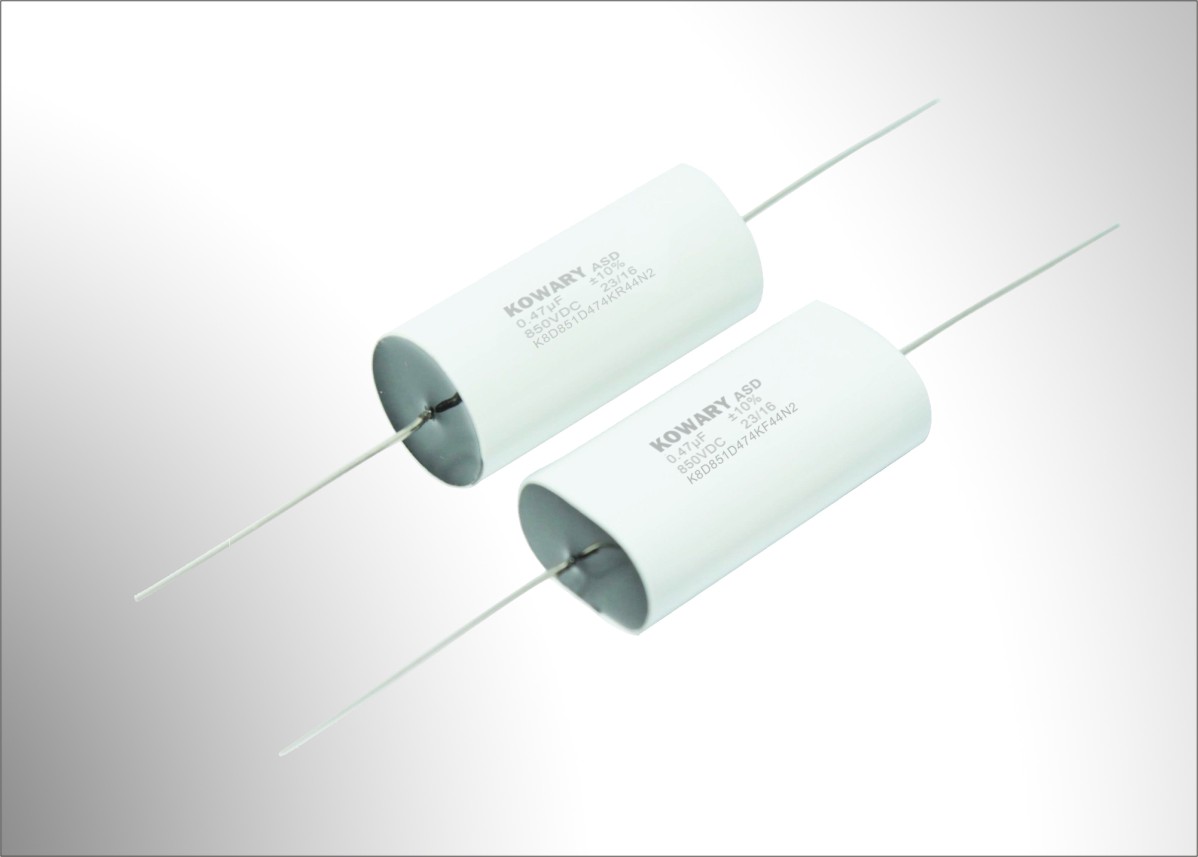

ASD (K8D) IGBT Snubber Capacitor
Capacitance range: 0.0068 to 8.5 μF
Rated voltage range: 700 to 3000 Vdc
Applications: designed for snubber/pulse applications.
For high pulse and high frequency applications requiring extremely reliable contacts e.g. IGBT-applications.
Wind Power converter, Medium & High Frequency Induction Heating, Electric Vehicle, SVG, AP, Inverter.
-

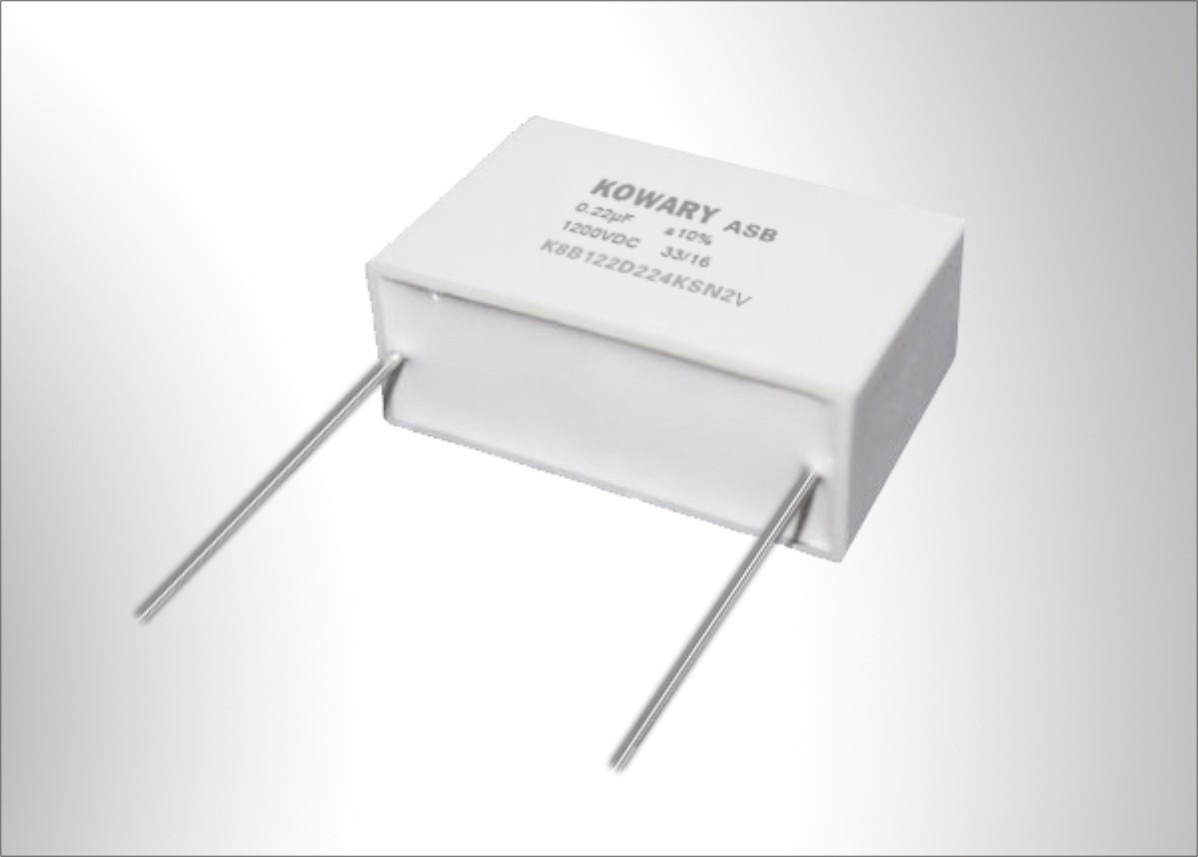

ASB (K8B) Snubber capacitor for Induction Heaters
Capacitance range: 0.0047 to 5.6 μF
Rated voltage range: 700 to 3000 Vdc
Applications: designed for snubber/pulse applications.
For high pulse and high frequency applications requiring extremely reliable contacts e.g. IGBT-applications.
Wind Power converter, Medium & High Frequency Induction Heating, Electric Vehicle, SVG, AP, Inverter.
-

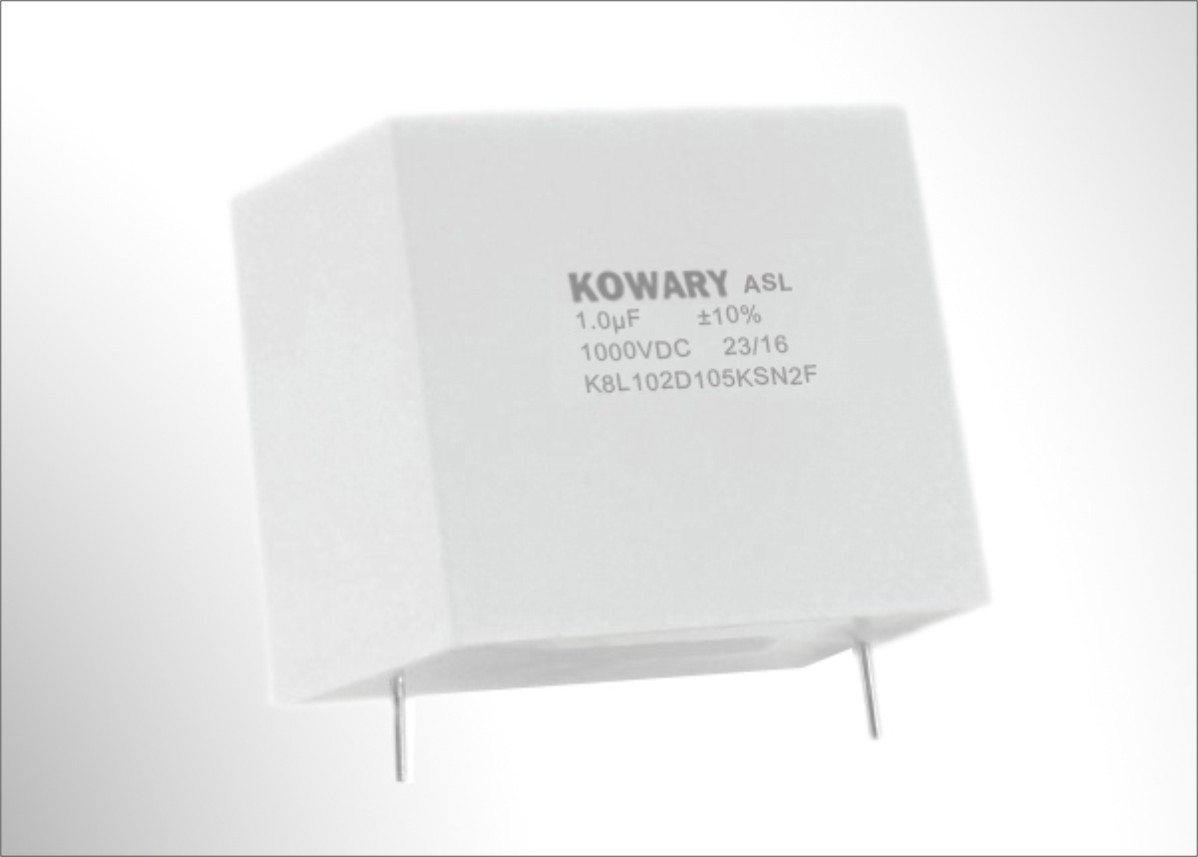

ASL (K8L) IGBT Snubber - High pulse
Capacitance range: 0.001 to 1.5 μF
Rated voltage range: 630 to 2000 Vdc
Applications: designed for snubber - high pulse
For high pulse and high frequency applications requiring extremely reliable contacts e.g. IGBT-applications.
Wind Power converter, Medium & High Frequency Induction Heating, Electric Vehicle, SVG, AP, Inverter.
-

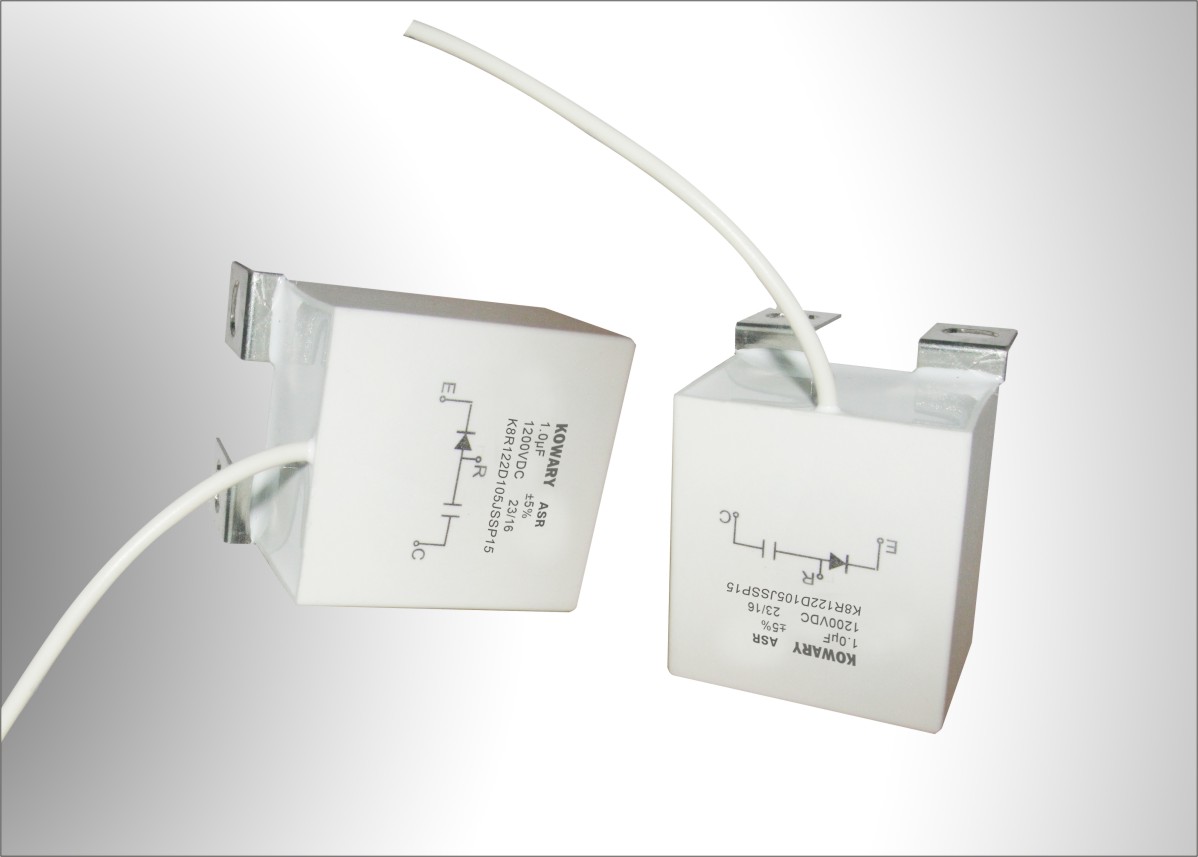

ASR (K8R) IGBT Snuber Capacitor
Capacitance range: 0.047 to 3.5 μF
Rated voltage range: 600 to 1200 Vdc
Applications: IGBT Snubber
For high pulse and high frequency applications requiring extremely reliable contacts e.g. IGBT-applications.
Wind Power converter, Medium & High Frequency Induction Heating, Electric Vehicle, SVG, AP, Inverter.
