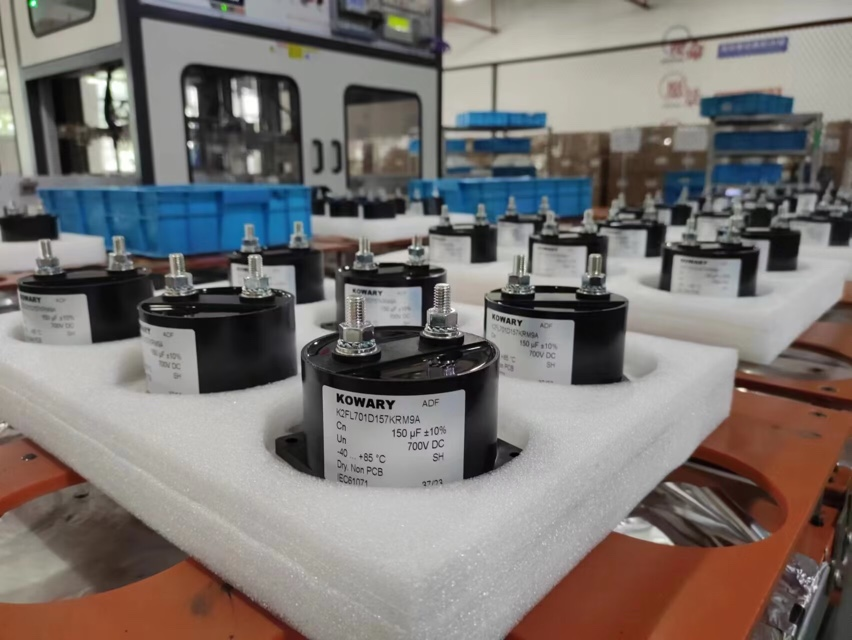

ADF (K2F) High current for New Energy Vehicle

Short Description:

Capacitance range: 6.8 to 2500 μF

Rated voltage range: 500 to 4000 Vdc

Applications: DC Link, low power, bigger current, low-inductance.

Widely applied to DC-filter circuits and ideal to instead of electrolytic capacitor.

Electromobile and hybrid power vehicle.

Motor driving, welding equipment and elevator.

Send email to us Download as PDF

Product Detail

Product Tags

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准 IEC 61071, IEC 60068

Dielectric 介质材料 Polypropylene film

Construction 封装结构 Dry construction, non-inductive type

Case 外壳材料 Solvent resistant plastic case. Flammability class UL94V-0

Output 引出端 Threaded insert M6 or M8, Lead screw M8 or M10

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围 - 40 to + 85 ℃ (hotspot temperature)

Capacitance range 容量范围 6.8 to 2500 μF

Rated voltage range 额定电压 500 to 4000 Vdc

Capacitance tolerance 容量偏差 ± 5%, ± 10%

Dissipation factor 损耗角正切 ≤2.0×10^-3 Measured at 100 Hz and 20±5℃

Life expectancy 预期寿命 100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度 1.5×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压 3KVAC/50Hz for 10s

Insulation resistance(IR*C_N) 绝缘电阻 ≥ 5000s but need not exceed 30GΩ,

after 1 minute of electrification at 100VDC (20±5℃)

■OVER-VOLTAGE 过压保护 1.10×U_NDCfor maximum 8 Hour per day

1.15×U_NDC for maximum 30 minimum per day

1.20×U_NDC for maximum 5 minimum per day

1.30×U_NDC for maximum 1 minimum per day

1.50×U_NDC for 30 ms no more than 1000 times

■OUTLINE DRAWING 外形图

Case code	D （mm）	Out put				P1 （mm）	P2 （mm）	d （mm）
Case code	D （mm）	F	Torque (N.M Max)	M	Torque (N.M Max)	P1 （mm）	P2 （mm）	d （mm）
A	87	M6*8	4.5	M8*20	8.5	45±1	101	5.5
B	115	M8*8	6.0	M10*20	12	60±1	133	6.5

■ELECTRICAL SPECIFICATION 规格型号参考 Unit: mm

Series: ADF-L

Part Number	Cap (μF)	Dimension		Ls max. (nH)	Du/dt (v/μs)	Imax @45℃ @10KHz (A)	ESR @1.0KHz (mΩ)	Rth (K/W)
Part Number	Cap (μF)	D	H	Ls max. (nH)	Du/dt (v/μs)	Imax @45℃ @10KHz (A)	ESR @1.0KHz (mΩ)	Rth (K/W)
U_NDC 500Vdc, Us 750V, Ur 150V
K2FL501D1256KR##A***	125	87.0	41.0	25	37	90	1.1	6.8
K2FL501D207KR##A***	200	87.0	51.0	32	25	90	1.5	5.9
K2FL501D2756KR##A***	275	87.0	65.0	40	16	85	1.5	5.0
K2FL501D357KR##B***	350	115.0	51.0	32	25	120	1.3	4.1
K2FL501D507KR##B***	500	115.0	65.0	40	26	125	1.3	3.5
U_NDC 700Vdc, Us 1050V, Ur 200V
K2FL701D107KR##A***	100	87.0	41.0	25	48	90	1.1	6.8
K2FL701D157KR##A***	150	87.0	51.0	32	32	90	1.4	5.9
K2FL701D227KR##A***	220	87.0	65.0	40	21	85	1.5	5.0
K2FL701D257KR##B***	250	115.0	51.0	32	32	115	1.3	4.1
K2FL701D357KR##B***	350	115.0	65.0	40	21	120	1.4	3.5
U_NDC 900Vdc, Us 1350V, Ur 250V
K2FL901D686KR##A***	68	87.0	41.0	25	56	80	1.2	6.8
K2FL901D107KR##A***	100	87.0	51.0	32	37	80	1.5	5.9
K2FL901D147KR##A***	140	87.0	65.0	40	25	75	1.6	5.0
K2FL901D207KR##B***	200	115.0	51.0	32	37	110	1.3	4.1
K2FL901D307KR##B***	300	115.0	65.0	40	25	115	1.4	3.5
U_NDC 1100Vdc, Us 1650V, Ur 300V
K2FL112D476KR##A***	47	87.0	41.0	25	73	75	1.2	6.8
K2FL112D686KR##A***	68	87.0	51.0	32	49	75	1.5	5.9
K2FL112D107KR##A***	100	87.0	65.0	40	33	70	1.7	5.0
K2FL112D1256KR##B***	125	115.0	51.0	32	49	105	1.4	4.1
K2FL112D187KR##B***	180	115.0	65.0	40	33	110	1.5	3.5

Series: ADF-H

Part Number	Capacitance (μF)	Dimension		Ls max. (nH)	Du/dt (v/μs)	Imax @45℃ @10KHz (A)	ESR @1.0KHz (mΩ)	Rth (K/W)
Part Number	Capacitance (μF)	D	H	Ls max. (nH)	Du/dt (v/μs)	Imax @45℃ @10KHz (A)	ESR @1.0KHz (mΩ)	Rth (K/W)
U_NDC 600Vdc, Us 960V, Ur 150V
K2FH601D107KR##A***	100	87.0	41.0	25	40	80	1.1	6.8
K2FH601D157KR##A***	150	87.0	51.0	32	27	80	1.4	5.9
K2FH601D227KR##A***	220	87.0	65.0	40	18	75	1.5	5.0
K2FH601D307KR##B***	300	115.0	51.0	32	27	110	1.3	4.1
K2FH601D477KR##B***	470	115.0	65.0	40	18	120	1.3	3.5
U_NDC 800Vdc, Us 1280V, Ur 200V
K2FH801D686KR##A***	68	87.0	41.0	25	56	75	1.2	6.8
K2FH801D107KR##A***	100	87.0	51.0	32	37	75	1.3	5.9
K2FH801D147KR##A***	140	87.0	65.0	40	25	70	1.6	5.0
K2FH801D307KR##B***	200	115.0	51.0	32	37	110	1.3	4.1
K2FH801D307KR##B***	300	115.0	65.0	40	25	120	1.4	3.5
U_NDC 1000Vdc, Us 1600V, Ur 250V
K2FH102D476KR##A***	47	87.0	41.0	25	73	70	1.2	6.8
K2FH102D686KR##A***	68	87.0	51.0	32	49	70	1.5	5.9
K2FH102D107KR##A***	100	87.0	65.0	40	33	65	1.7	5.0
K2FH102D147KR##B***	140	115.0	51.0	32	49	105	1.3	4.1
K2FH102D207KR##B***	200	115.0	65.0	40	33	110	1.4	3.5
U_NDC 1200Vdc, Us 1920V, Ur 300V
K2FH122D256KR##A***	25	87.0	41.0	25	90	60	1.3	6.8
K2FH122D356KR##A***	35	87.0	51.0	32	70	60	1.7	5.9
K2FH122D506KR##A***	50	87.0	65.0	40	50	65	1.9	5.0
K2FH122D606KR##B***	60	115.0	51.0	32	70	100	1.4	4.1
K2FH122D806KR##B***	80	115.0	65.0	40	50	110	1.6	3.5
U_NDC 1500Vdc, Us 2400V, Ur 350V
K2FH152D186KR##A***	18	87.0	41.0	25	113	55	1.4	6.8
K2FH152D256KR##A***	25	87.0	51.0	32	85	55	1.8	5.9
K2FH152D356KR##A***	35	87.0	65.0	40	60	50	2.1	5.0
K2FH152D476KR##B***	47	115.0	51.0	32	85	100	1.5	4.1
K2FH152D686KR##B***	68	115.0	65.0	40	60	105	1.6	3.5
U_NDC 1800Vdc, Us 2880V, Ur 400V
K2FH182D106KR##A***	10	87.0	41.0	25	175	50	1.5	6.8
K2FH182D156KR##A***	15	87.0	51.0	32	120	50	1.9	5.9
K2FH182D226KR##A***	22	87.0	65.0	40	80	45	2.2	5.0
K2FH182D256KR##B***	25	115.0	51.0	32	120	90	1.6	4.1
K2FH182D356KR##B***	35	115.0	65.0	40	80	100	1.8	3.5
U_NDC 2200Vdc, Us 3520V, Ur 450V
K2FH222D685KR##A***	6.8	87.0	41.0	25	200	50	1.6	6.8
K2FH222D106KR##A***	10	87.0	51.0	32	150	50	2.1	5.9
K2FH222D156KR##A***	15	87.0	65.0	40	100	45	2.5	5.0
K2FH222D186KR##B***	18	115.0	51.0	32	150	90	1.7	4.1
K2FH222D256KR##B***	25	115.0	65.0	40	100	100	2.0	3.5
