■General Technical Characteristics 一般特性

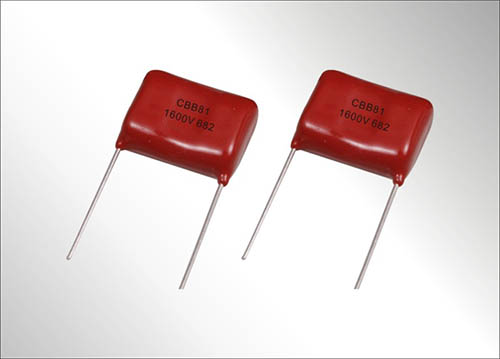

Metallized polypropylene film/foil, wound construction

金属化聚丙烯膜箔式，卷绕结构

Low loss and small inherent temperature rise

损耗小，内部温升小

Negative temperature coefficient of capacitance

负电容器温度系数

Flame retardant epoxy resin powder coating (UL94/V-0)

阻燃性环氧粉末包封（UL94/V-0 )

■Electrical Characteristics 电气特性

Reference Standard 引用标准:           GB/T 14579 (IEC60384-17)

Climatic Category 气候类别:             40/105/21

Rated Temperature 额定温度:           85°C

Operating Temperature Range:           -40°C ~ 105°C

工作温度范围:                          (+85°C to +105°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage 额定电压:               630V, 800V, 1000V/1250V, 1600V, 2000V, 2500V

Capacitance Range 电容量范围:         0.0010µF ~ 0.036µF

Capacitance Tolerance 电容量偏差:      ±3% (H), ±5%(J), ±10%(K),

Dissipation Factor 损耗角正切:           ≤10x10^-4 Measured at 1KHz and 20°C

                                                   ≤20x10^-4 Measured at 1KHz and 20°C.

Test Voltage 耐电压:                   1.75U_R for 5 sec.

Insulation Resistance 绝缘电阻:        ≥100 000MΩ  Measured at 20°C, 100V and 1 min.
