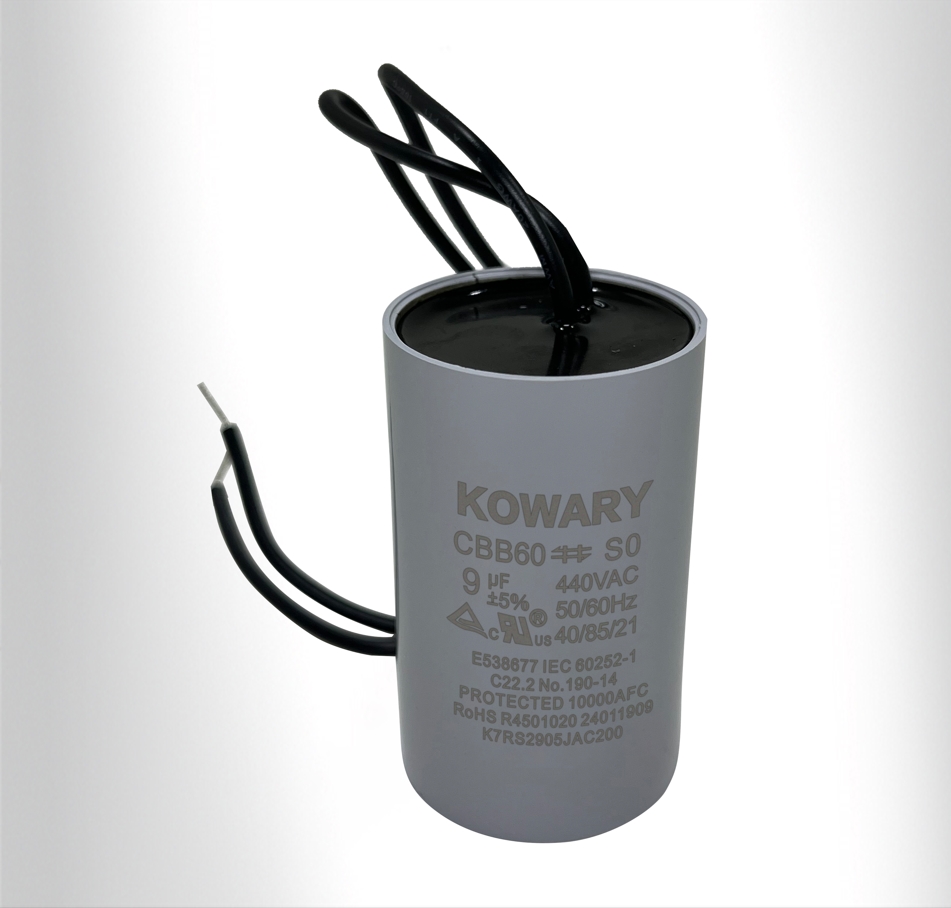

CBB60 (K7R) 启动电容 S0
■General Technical Characteristics 一般特性
Self-healing property
良好的自愈性
Excellent stable performance and reliability
性能稳定、可靠性强
■Typical Applications 典型应用
Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency.
适用于频率为50Hz/60Hz交流电源供电的单相电动机起动和运转。
■Electrical Characteristics 电气特性
Reference Standard 引用标准: | GB/T 3667.1 (IEC60252-1) |
Climatic Category 气候类别: | 40/85/21 |
Class of Operation 运行等级: | 500VAC Class C (3 000h), 450VAC Class B (10 000h) |
Rated Voltage 额定电压: | 500VAC |
Capacitance Range 电容量范围: | 1.0µF ~ 80.0µF |
Capacitance Tolerance 电容量偏差: | ±5% (J), ±10%(K) |
Class of Safety Protection 安全防护等级: | S0 |
Dissipation Factor 损耗角正切: | ≤0.2% Measured at 1KHz, CN≤10µF ≤0.6% Measured at 1KHz, CN≤35µF ≤0.8% Measured at KHz, CN>35µF |
Test Voltage 耐电压: | Between Terminals: 1 000VAC (2S) Between Terminals to Case: 3 000VAC (60S) |
Maximum Permissible Voltage 最高运行电压: | 1.1U N |
Maximum Permissible Current 最高运行电流: | 1.3IN |
Insulation Resistance 绝缘电阻: | ≥3 000s (20°C, 100V, 1min.) |
