■General Technical Characteristics 一般特性

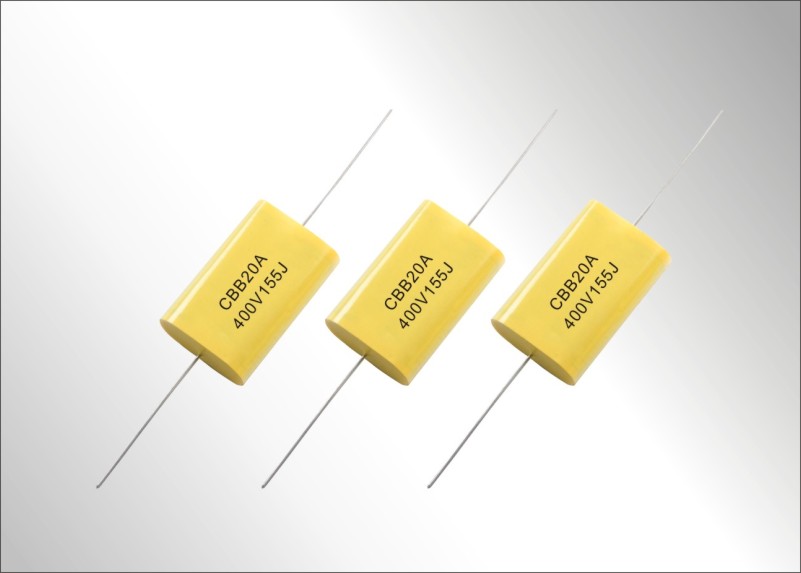

Metallized polypropylene film, non-inductive type, axial

金属化聚丙烯膜，无感卷绕结构，轴向

Excellent self-healing property

自愈性能优异

Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin

外包聚酯胶带纸，两端灌注阻燃性环氧树脂

■Electrical Characteristics 电气特性

Reference Standard 引用标准:           GB/T 10190 (IEC60384-16)

Climatic Category 气候类别:             40/85/21

Rated Temperature 额定温度:           85°C

Operating Temperature Range:           -40°C ~ 105°C

工作温度范围:                          (+85°C to +105°C: decreasing factor 1.25% per °C for U_R)

Rated Voltage 额定电压:                100V/160V, 250V, 400V, 630V, 1000V, 1250V

Capacitance Range 电容量范围:         0.0010µF ~ 15.0µF

Capacitance Tolerance 电容量偏差:      ±5% (J), ±10%(K), ±20%(M),

Dissipation Factor 损耗角正切:           ≤0.1% Measured at 1KHz and 20°C.

Test Voltage 耐电压:                   1.6U_R for 5 sec.

Insulation Resistance 绝缘电阻:          ≥50 000MΩ,   for CR≤0.33µF

                 ≥15 000s,     for CR>0.33µF Measured at 20°C, 100V and 1 min.

Maximum Pulse Rise Time(dV/dt) 最大脉冲爬升速率:

If the working voltage (U) is lower than the rated voltage (U_R), the capacitor can be worked at a higher dV/dt. In this case, the maximum allowed dV/dt is obtain by multiplying the left value with U_R/U.

若实际工作电压U比额定电压 U_R低，电容器可工作在更高的dV/dt场合， 这样dV/dt允许值应为左表值乘以U_R/U.
